SmartAX 10 Gbit/s PON ONUs
High-capacity 10 Gbit/s Passive Optical Network (PON) Optical Networking Units (ONUs) for resilient, high-density Fiber-To-The-Curb (FTTC) and Fiber-To-The-Building (FTTB) services. SmartAX MA58xx Series ONUs support 10 Gbit/s upstream bandwidth, and are fully compatible with GPON networks.
Enable a smooth transition from GPON to 10 Gbit/s PON communications and expand capacity to meet bandwidth requirements with Huawei’s flexible SmartAX MA58xx Series ONUs.
Deliver resilient access for high-bandwidth applications with Huawei SmartAX MA5871, MA5821/22, MA5898, MA5878, and MA5818 10 Gbit/s Optical Networking Units
- 10 Gbit/s PON ports for upstream transmissions enable higher access bandwidth and service requirements. 10 Gbit/s PON networks coexist with PON networks and are compatible with existing Optical Distribution Networks (ODNs)
- Flexible service configurations and settings help you set configurations based on user requirements and keep pace with advancements in technology
- Multiple types of service boards can be installed in the same subrack to provide flexible GE, POTS, E1, and FE downstream ports

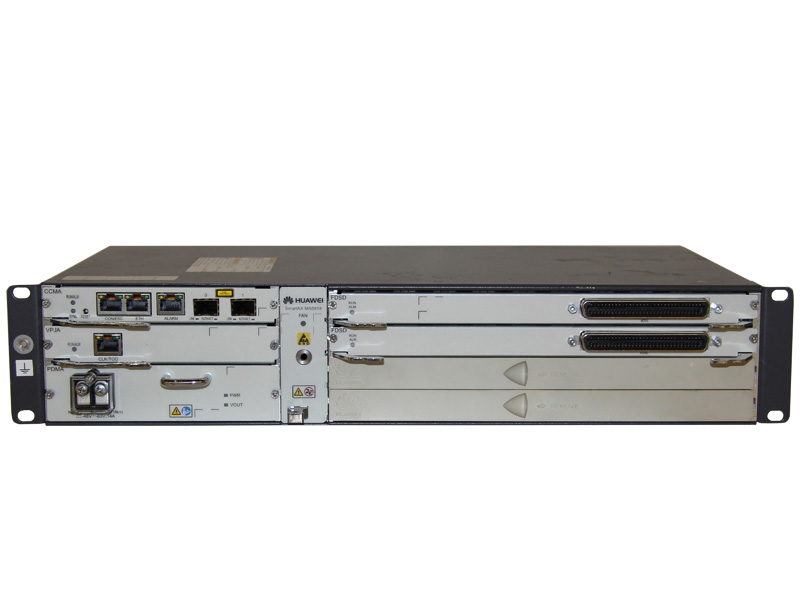

- G.fast is a new high-bandwidth access technology that applies to copper lines. The MA5818 provides rates of up to 1 Gbit/s over existing twisted pairs. G.fast is applicable to FTTB and FTTD networks
| Specifications | MA5871 | MA5821 | MA5822 | MA5878 | MA5898 | MA5818 |
| Dimensions (H x W x D) | 27 mm x 160 mm x 115 mm | 43.6 mm x 250 mm x 180 mm (8 FE) 43.6 mm x 442 mm x 220 mm (16 FE/24 FE) |
442 mm x 220 mm x 43.6 mm | 43.6 mm x 442 mm x 245 mm | 43.6 mm x 442 mm x 220 mm | 88.1 mm x 442 mm x 245 mm |
| Operating Environment | 0°C to 40°C 5% RH to 95% RH |
–40°C to 65°C 5% RH to 95% RH |
–40°C to 65°C 5% RH to 95% RH |
–40°C to 65°C 5% RH to 95% RH |
–40°C to 65°C 5% RH to 95% RH |
-40°C to 65°C 5% RH to 95% RH |
| Power | DC: 12V, 2A | AC: 220V | AC: 220V | DC: -48V to -60V AC: 90V to 264V |
220V (AC) + backup (2V DC) DC: –48V |
AC: 90V to 264V
DC: -38.4V to –72V |
| Network-side Ports | 10G GPON/GPON Port/GE (optical) /GE (electric) Note: The upstream GE electric port and the user-side GE port is the same port |
One SFP optical port 10G PON or PON (auto-negotiation) |
One SFP optical port 10G PON or PON (auto-negotiation) |
One SFP optical port 10G PON or PON (auto-negotiation) Houses XS1C and supports 10G GPON (symmetric) |
One SFP optical port 10G PON or PON (auto-negotiation) |
Two SFP optical port 2 GE/2 x 10 GE 1 GPON/1 XG-PON |
| User-side Ports | 4 GE | 8 FE 16 FE 24 FE 24 GE PoE |
8 FE + 8 POTS 16 FE + 16 POTS 24 FE + 24 POTS |
Fixed configurations: 8 x GE (electrical) 3 service slots: 8 x GE (electrical) 16 x POTS 8 x POTS |
Fixed configurations: 8 x GE (electrical), two of which support GE optical and electrical 2 service slots: 8 x FE 8 x E1 |
4 line cards for G.fast: 24 channels compatible with VDSL2 |
| Surge Protection | Power port: 6 kV GE: 4 kV |
Power port: 6 kV FE/GE: 4 kV |
Power port: 6 kV FE: 4 kV POTS: 4 kV |
DC-powered port: Differential mode 2 kV; common mode 4 kV LAN port: 4 kV POTS port: 4 kV |
Power port: 6 kV LAN: 4 kV POTS: 4 kV |
Power port: 6 kV G.fast: 4 kV |
