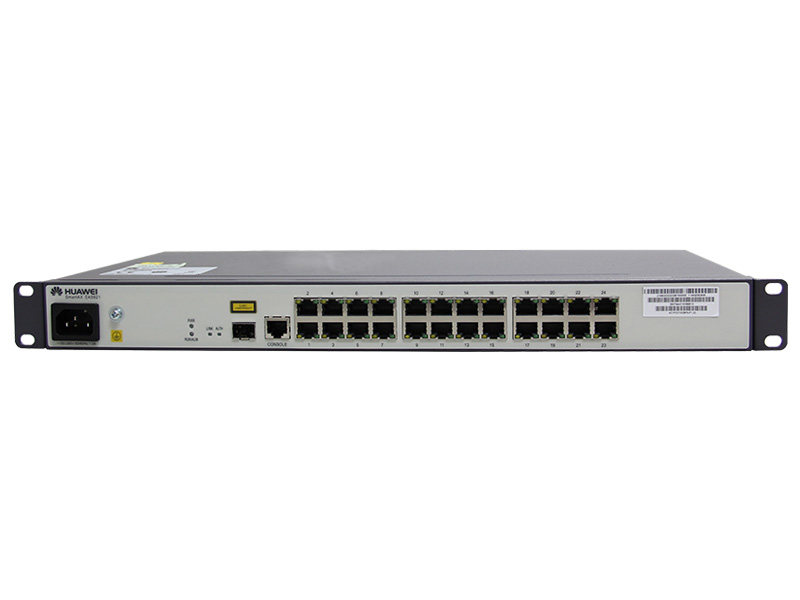

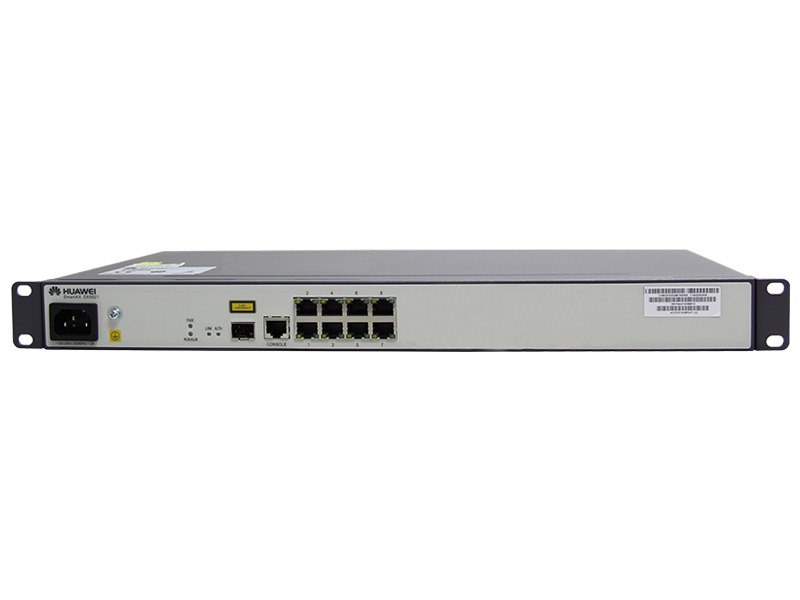

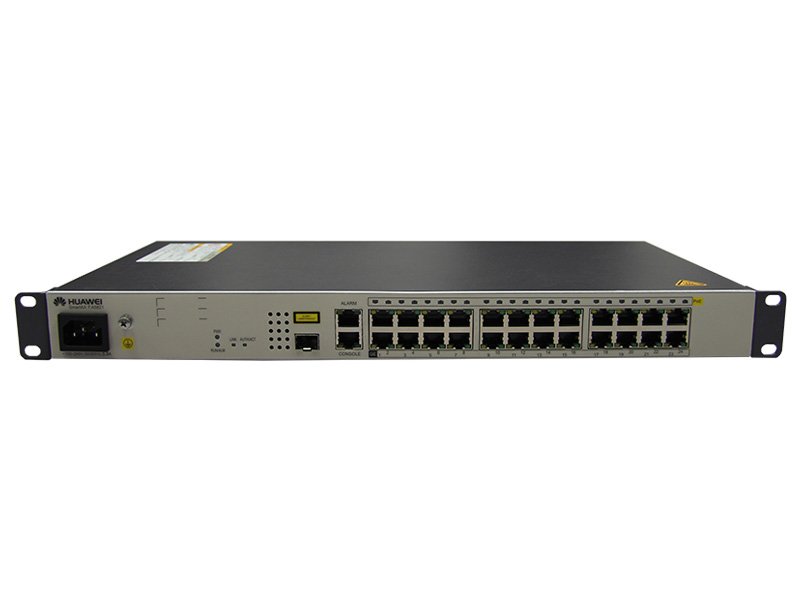

SmartAX EA5821 Series ONUs
The SmartAX EA5821 applies to Fiber-to-the-Building (FTTB) or Fiber-to-the-Curb (FTTC) network applications for data and multicast services for community users. The EA5821 applies to video surveillance scenarios. It provides one GPON/10G GPON uplink port and supports 8 GE/24 GE access, 24 GE with an intelligent PoE function.
Super compatibility, intelligent PoE, and flexible service configurations
- Super Compatibility: The EA5821 supports GPON and 10G GPON uplink, coexists with legacy PON network, compatible with legacy ODN network
- EA5821 supplies intelligent PoE power for terminal devices such as an outdoor Access Point (AP) over an Ethernet cable
- Various types of EA5821 allow flexible service configurations: 8 GE/24 GE/24 GE PoE are available for suitable user scenarios
Specifications
| Specifications | EA5821 8 GE | EA5821 24 GE | EA5821 24 GE PoE |
| Dimensions (W x D x H) | 442 mm x 220 mm x 43.6 mm | 442 mm x 220 mm x 43.6 mm | 442 mm x 220 mm x 43.6 mm |
| Operating Environment | –40°C to 55°C 5% RH to 95% RH |
–40°C to 55°C 5% RH to 95% RH |
–40°C to 65°C 5% RH to 95% RH |
| Power | AC: 220V | AC: 220V | AC: 220V |
| Network-side Ports | One SFP optical port 10G GPON or GPON |
One SFP optical port 10G GPON or GPON |
One SFP optical port 10G GPON or GPON |
| User-side Ports | 8 GE | 24 GE | 24 GE PoE |
| Surge Protection | Power port: 6 kV GE: 4 kV |
Power port: 6 kV GE: 4 kV |
Power port: 6 kV GE: 4 kV |
