SmartAX MA5612/MA5616 Remote ONUs
Flexible Optical Network Units (ONUs), configurable for POTS, Passive Optical Network (PON), and high-density broadband services. Comprehensive QoS features enable remote O&M, automated provisioning, upgrades, and real-time fault detection and response.
Four upstream slots can be used for 2 x Gbit/s PON, or 2 x optical GE, or 1 each optical GE and Gbit/s PON; also supports combination boards for higher density downstream access.

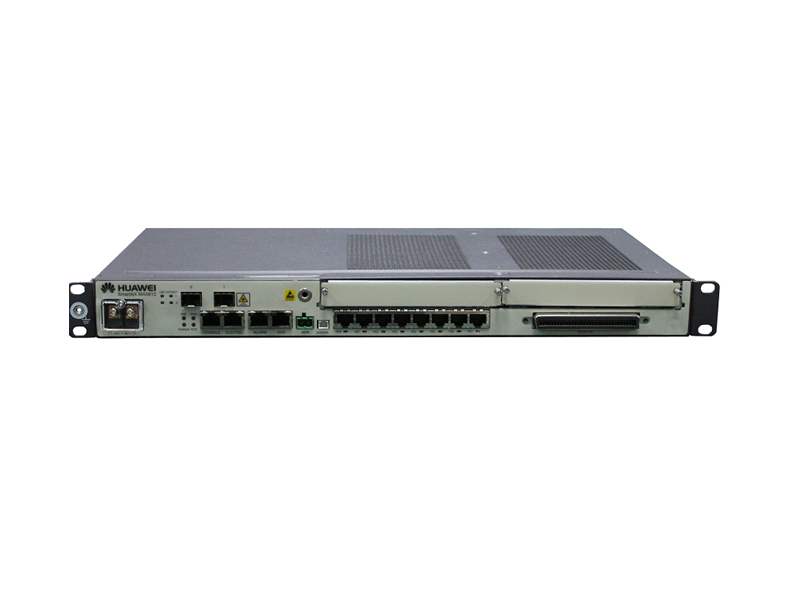

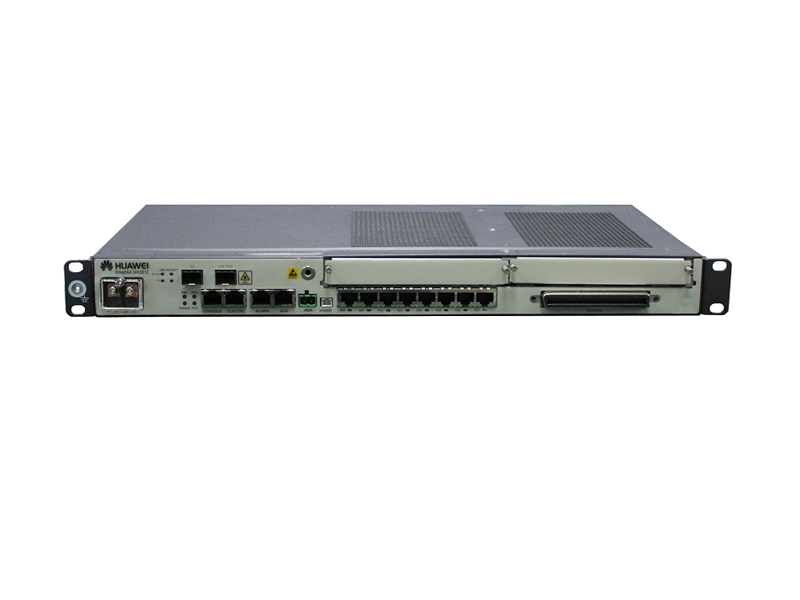

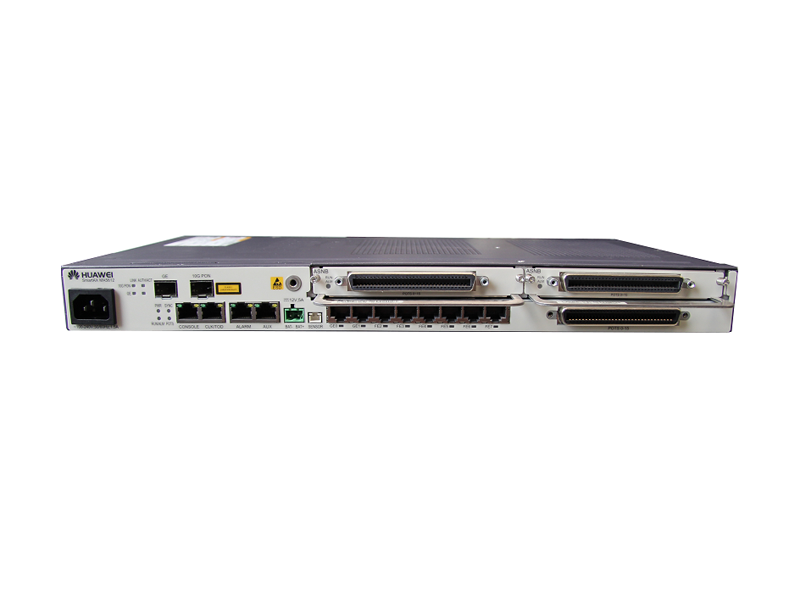

Choose the SmartAX MA5612 ONUs for POTS and Gbit/s optical services with carrier-grade reliability.
Versatile, remote ONUs configurable for multiple port types and services including FTTC and FTTB broadband, and enterprise leased lines over Passive Optical Networking

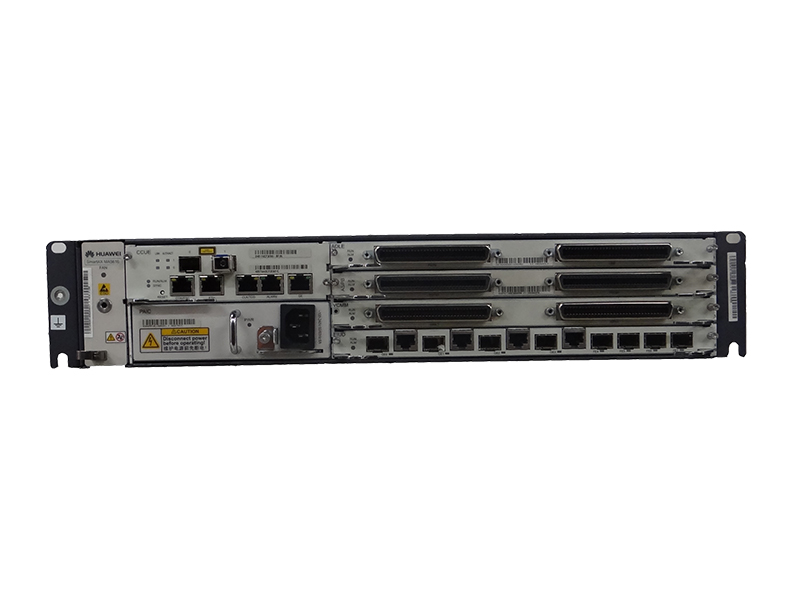

- High user density and multiple service provisioning capabilities by providing 4 service slots, and supporting POTS, ADSL2+, VDSL2, and FE ports. The MA5616 supports the vectoring function to expand VDSL2 bandwidth for VDSL2 line acceleration
- Supports flexible service configurations: Service boards can be inserted in any slot. Various types of ports can be flexibly configured for multiple applications. Also supports combo boards to effectively improve access density, save equipment room space, and simplify cable layout
- High-efficiency remote OAM, including configuration, automatic commissioning, plug and play, acceptance, upgrade, fault detection, and maintenance
Specifications
| Specifications | MA5612 | MA5616 |
| Dimensions (H x W x D) | 43.6 mm x 442 mm x 245 mm | 88.1 mm x 442 mm x 245 mm |
| Operating Environment | –40°C to 65°C 5% RH to 95% RH |
–40°C to 65°C 5% RH to 95% RH |
| Power | AC: 110V/220V DC: –48V |
AC: 110V/220V DC: –48V |
| Network-side Ports | Available configuration modes: 2 x GPON 2 x GE (optical) 1 x GE (optical) + 1 x GPON |
Available configuration modes: CCUE: GPON/GE, 1 x GE (electrical or optical) CCUD: 1 x GPON, 1 x GE (electrical) |
| User-side Ports | GE, FE, POTS, and E1 | ADSL2+, VDSL2, POTS, G.SHDSL, E1, ISDN, FE, and GE |
| Surge Protection | Power: 6 kV GE/FE: 4 kV POTS: 4 kV |
Power: 6 kV GE/FE: 4 kV POTS: 4 kV |
