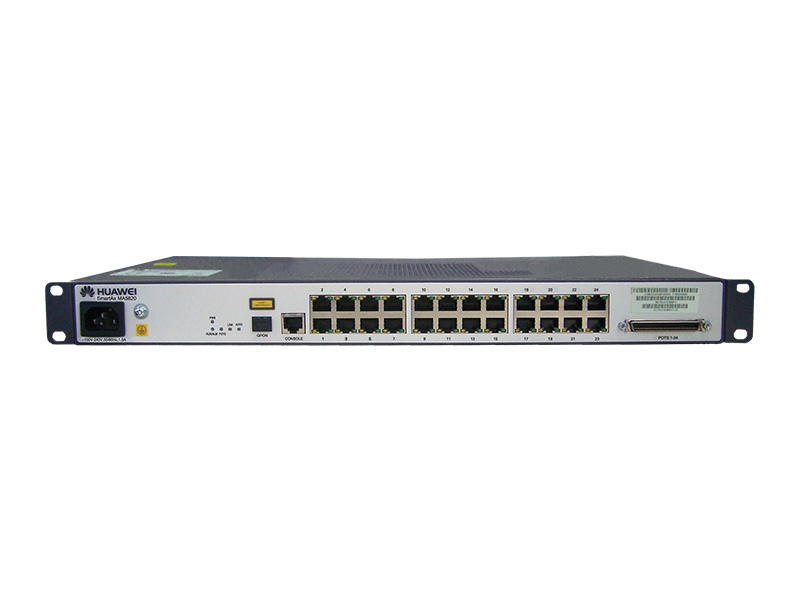

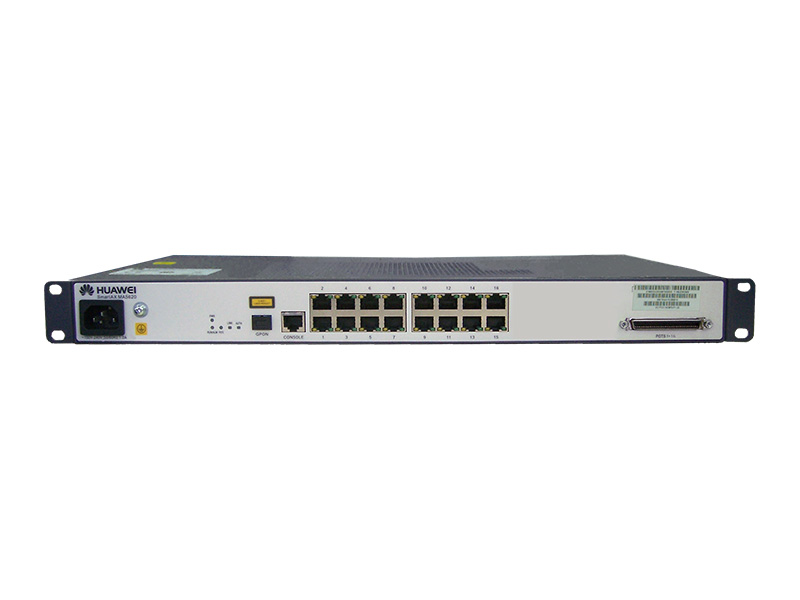

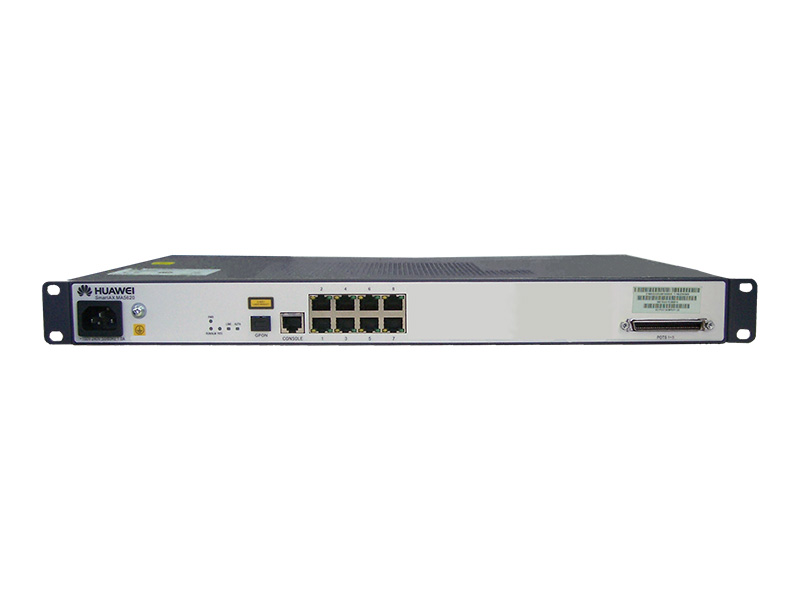

SmartAX MA5620 Series Fiberoptic MDUs
High-availability, energy-efficient Multi-Dwelling Units (MDUs) that support broadband access and VoIP services on Fiber-To-The-Building (FTTB) networks for family users and small to medium-sized enterprises. The MA5620 is a box-type device configurable with a GPON uplink ports and up to 8, 16, or 24 downstream ports for broadband, VoIP, POTS, and Internet access services.
SmartAX MA5620 device provide quiet, reliable operation over a broad range of temperature and humidity levels, with low power consumption. These MDUs can be used indoors or outdoors in cabinets, on walls, or placed on workbenches for easy installation and maintenance.
Deliver resilient broadband, VoIP, POTS, and Internet access services with SmartAX fiberoptic access units for residences with multiple tenants and small businesses
- Flexible service configurations support diverse upstream and downstream networking requirements
- Strong QoS capabilities include Dynamic Bandwidth Allocation (DBA), flexible service mapping, and service-management-based workflows
- Offline deployment and plug-and-play features enable remote configuration, provisioning, and management
- Installs easily on a pole or wall, or outdoors in Huawei’s ruggedized uniSite Cabinet System
Specifications
| Specifications | MA5620 |
| Dimensions (H x W x D) | 43.6 mm x 442 mm x 220 mm |
| Network-side Port | 1 x GPON |
| User-side Ports | 24 x FE + 24 x POTS 16 x FE + 16 x POTS 8 x FE + 8 x POTS |
| Operating Temperature | -40°C to 55°C; start-up at -25°C |
| Humidity | 5% to 95% (non-condensing) |
| Heat Dissipation Mode | No fans; passive cooling |
| Power Supply | AC: 110V, 220V |
| Lightning Protection Capability | LAN: 4 kV; POTS: 4 kV |
