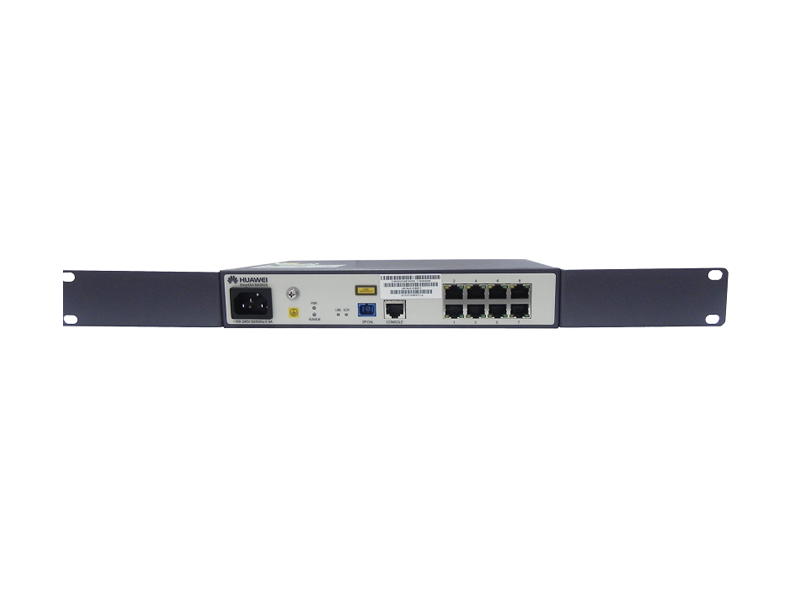

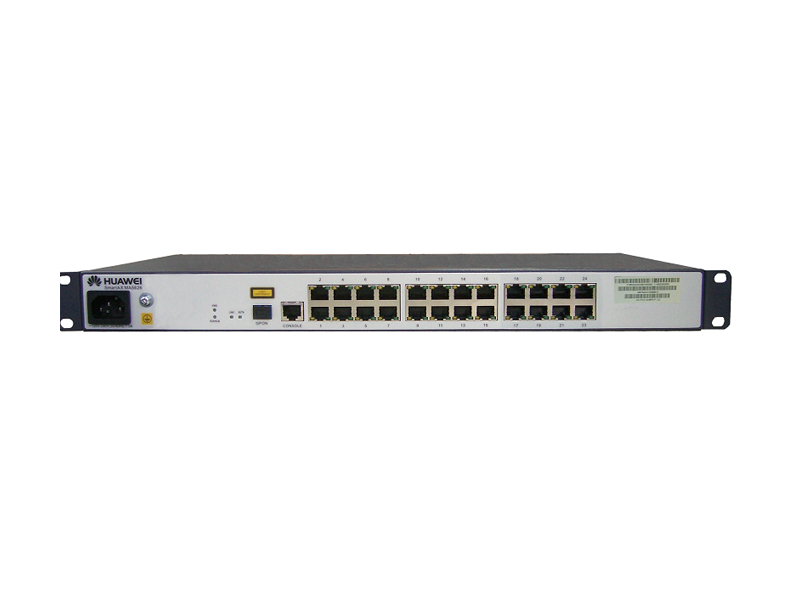

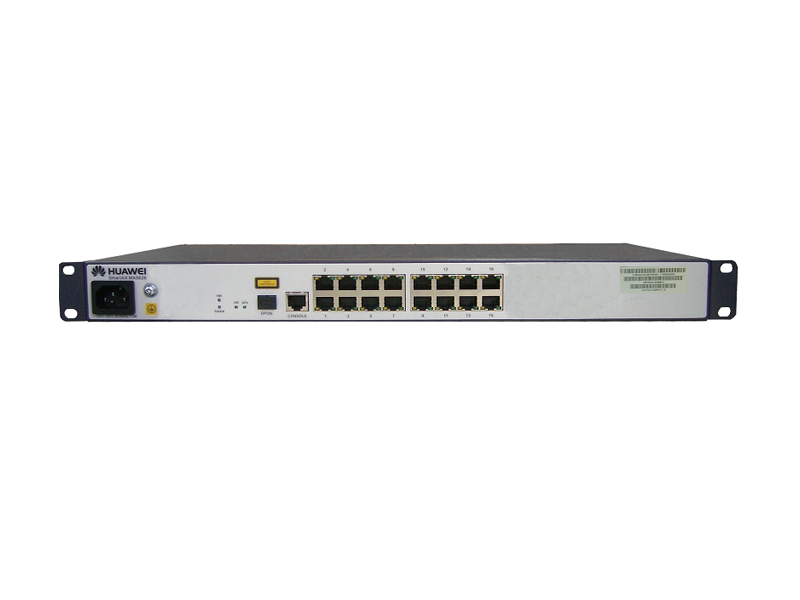

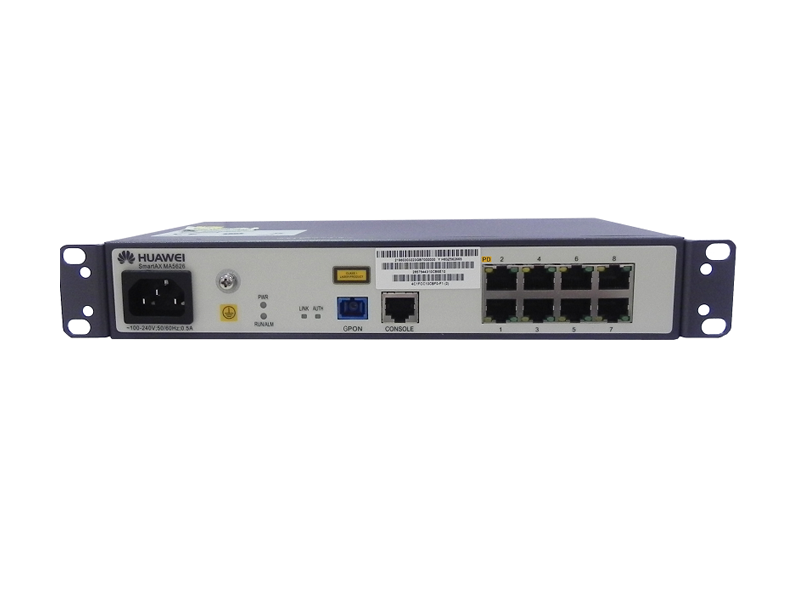

SmartAX MA5626 ONU
Optical Network Units (ONUs) with Power-over-Ethernet (PoE) support, comprehensive QoS features including Dynamic Bandwidth Allocation (DBA), and up to 8, 16, or 24 downstream FE ports. Ideal for IPTV, video monitoring, and wireless broadband services in small and medium-sized offices.
Ruggedized for high reliability indoors or outdoors, MA5626 ONU is connected with GPON uplink to an Optical Line Terminal (OLT). Units can be managed and upgraded remotely, and configured in advance through batch pre-deployment.
Deliver WLAN broadband services and video surveillance capabilities with Huawei’s SmartAX MA5626 remote ONU
- Supports PoE and reverse PoE technologies, simplifying deployment to the wireless Access Point (AP), camera, data collection terminal, or ONU
- Several specification sets are available based on diverse user requirements with flexible service configurations
- Offline deployment and plug-and-play features that also support remote configuration issuance, commissioning, and multiple installation options, including mounting on a pole or wall. These features can be used together with the Huawei uniSite outdoor cabinet solution
Specifications
| Specifications | MA5626 |
| Dimensions (H x W x D) | 16 FE/24 FE: 43.6 mm x 442 mm x 220 mm 8 FE: 43.6 mm x 250 mm x 180 mm |
| Operating Environment | –40°C to 65°C 5% RH to 95% RH |
| Power | AC: 110V or 220V |
| Network-side Ports | 1 x GPON, 1 x EPON |
| User-side Ports | 8/16/24 x FE 8/16/24 x FE (PoE) 4 x GE + 4 x FE (PoE) 8 x FE (reverse PoE) |
| Surge Protection | LAN: 4 kV |
