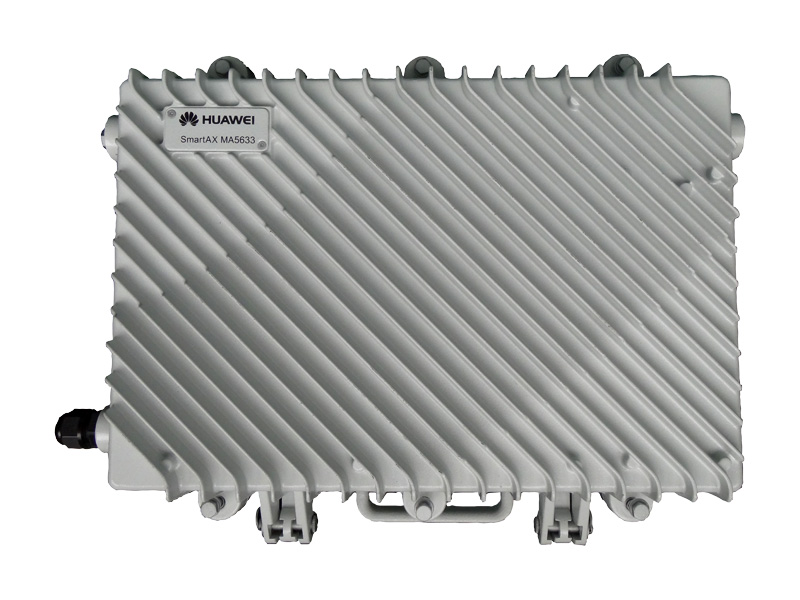

SmartAX MA563x Series Fiber ONUs
Huawei SmartAX MA563x Series Fiber ONUs provide a gigabit coaxial solution that integrates FTTH and Distributed-Converged Cable Access Platform (D-CCAP). They help MSOs use the coaxial and fiber network to provision gigabit broadband, video, voice, and enterprise private line services.
Coaxial and fiber for digital HFC network, FTTH construction on demand, and DOCSIS 3.1 with high performance
- Digital HFC network: Digitalization reduces the need for analog devices in the distribution hub, such as optical receivers and transmitters, EQAM devices, and frequency mixers. It saves 70% of the distribution hub and 50% of power consumption, reducing TCO by 30%
- FTTH construction on demand: D-CCAP integrates FTTH technology which enables MSOs to share OLT and ODN. Therefore, FTTH can be deployed as required, and full-service operations, such as enterprise leased line and mobile carrier services, are supported
- DOCSIS 3.1 with high performance: With digital optical fiber technologies, Huawei D-CCAP solution improves the signal-to-noise ratio by 6 dB to 9 dB, enhances the DOCSIS 3.1 performance, and delivers gigabit broadband to 80% of current home subscribers without reconstruction
Specifications

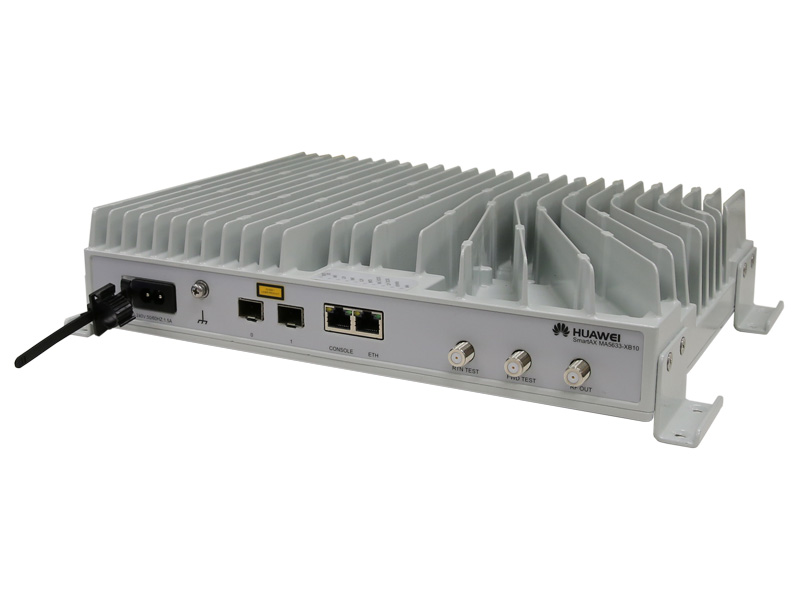

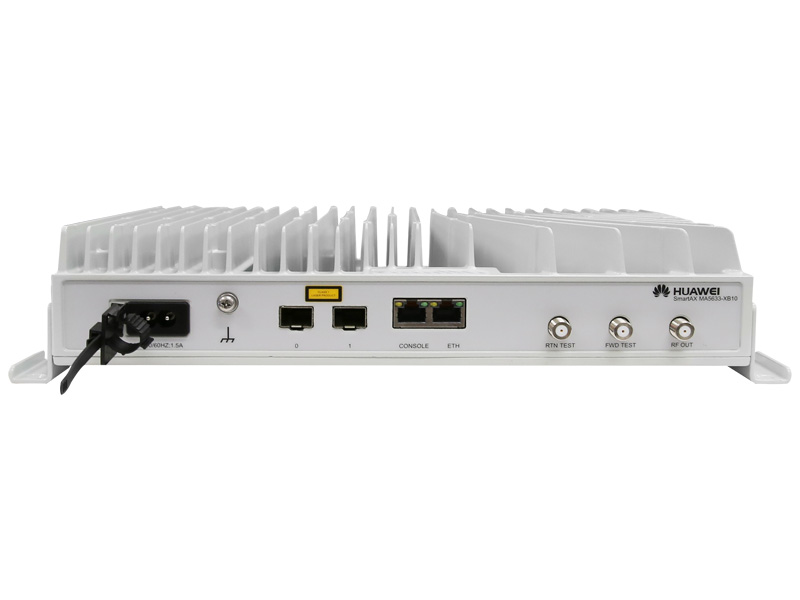

| Specifications | MA5633 D3.0 CMC | MA5633 D3.1 CMC | MA5633-XB10 D3.0 CMC |
| Dimensions (H x W x D) | 400 mm x 275 mm x 175 mm | 365 mm x 220 mm x 175 mm | 66 mm x 320 mm x 240 mm |
| Operating Environment | -40°C to 55°C 5% RH to 95% RH |
-40°C to 55°C 5% RH to 95% RH |
-40°C to 55°C 5% RH to 95% RH |
| Power | AC: 60V (remote power supply) AC: 220V |
AC: 60V (remote power supply) AC: 220V |
AC: 220V |

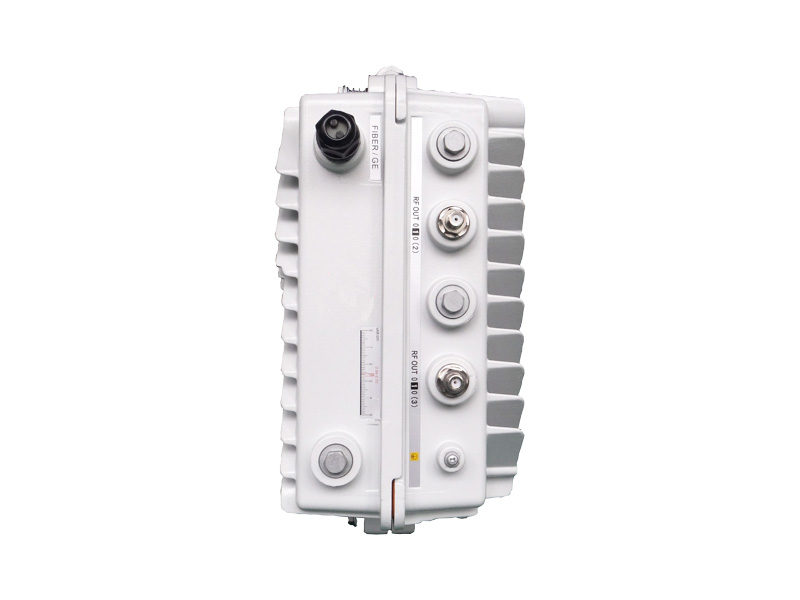

| Network-side Ports | 2 x GPON/GE | 1 x 10G GPON | 2 x GPON/GE |

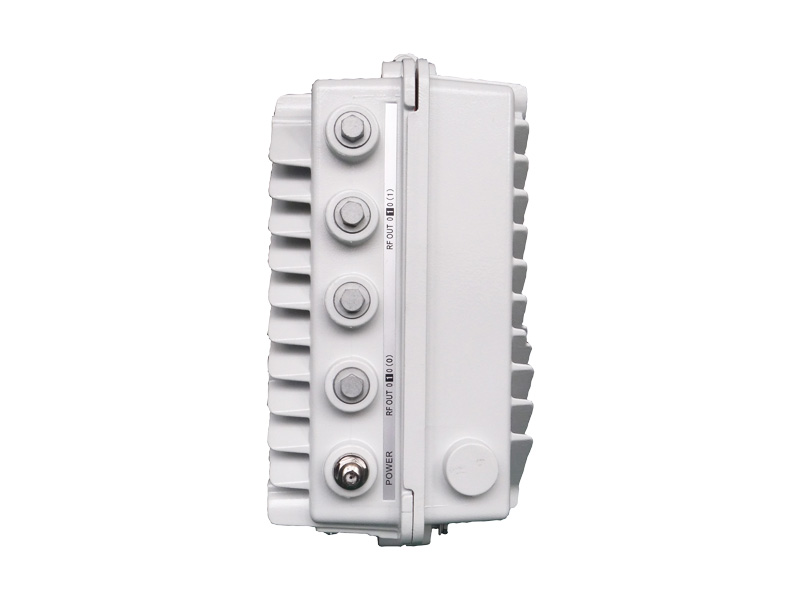

| RF Port | 4 RF outputs | 4 RF outputs or 2 RF outputs | 1 RF output |
| Optical Transceiver | 2 x RX | 1 x RX 0 x TX or 2 x TX |
N/A |
| Heat Dissipation Mode | No fans, passive cooling | No fans, passive cooling | No fans, passive cooling |
