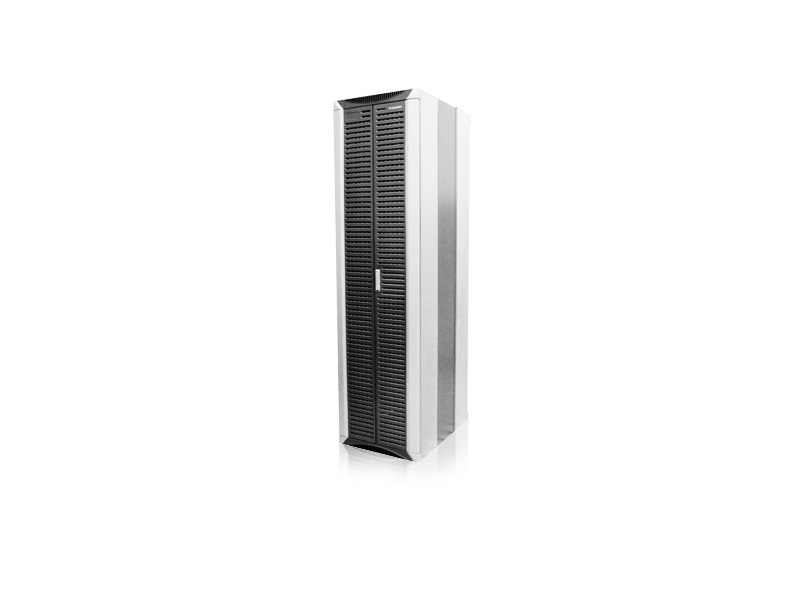

Softswitch GTSOFTX3000
This Mobile Switching Center (MSC) server is an integrated, customizable GSM-R solution that can meet the needs of railway operators and networks around the world. Secure and reliable, it is easy to maintain, operate, and manage.
It provides services on a traditional GSM-R network that range from basic, to supplementary, to value-added, as required by railway operators. It controls calls and manages the communication of mobile stations within mobile networks. In addition, its standards-based architecture supports fast and flexible introduction of new services.
What’s more, it can access packet-switched networks directly, making it easy to construct GSM-R networks.
An integrated, customizable solution that controls calls and manages communications among mobile stations
- Uses the advanced OSTA2.0 hardware platform and standards-based architecture
- Features high transmission rates, processing capability, and availability, plus easy scalability and management
- Reliability design methods include active/standby boards, load-sharing, and redundancy configuration
- MSC pool networking and dual homing provide MSC-level disaster recovery and improve network reliability
Specifications
| Parameters | Specifications |
| Maximum Number of UEs Supported by the MSC | 300,000 (0.05 ERL per UE) |
| Maximum Number of MGWs that the MSC can Control | 300 |
| Maximum Number of Supported RNCs | 256 |
| Maximum Number of Supported BSCs | 256 |
| Power Input | Rated voltage: -48V DC
Voltage range: -40V to -57V |
| System Availability (A) | ≥ 99.99953% |
| Mean Time Between Failures (MTBF) | ≥ 24 years (full configuration)
≥ 42 years (single subrack) |
| Mean Time To Repair (MTTR) | ≤ 1 hour (excluding the preparation time) |
