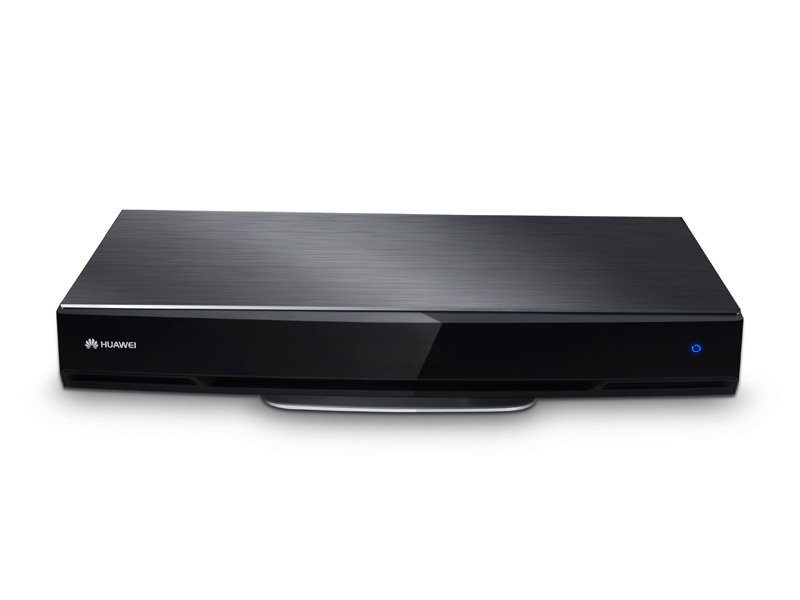

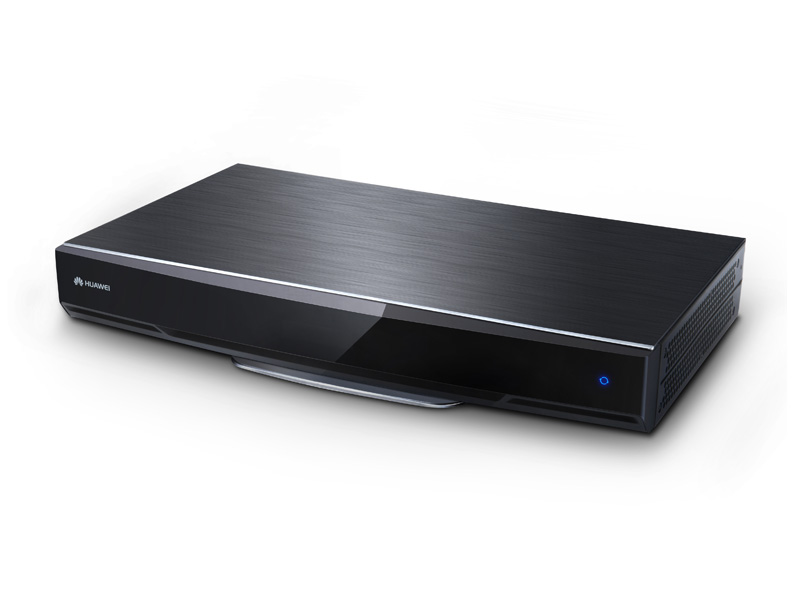

TE Series HD Videoconferencing Endpoints

Experience “in-person” video conferencing thanks to dual-channel 1080p60 HD video and AAC-LD audio; a panoramic view is created from multiple camera feeds.

TE series endpoints combine VME and H.264 HP to reduce bandwidth consumption by 50%. Key technologies such as intelligent face detection, frame rate doubling, and video enhancement ensure outstanding video communication. This advanced system provides numerous audiovisual ports and built-in Wi-Fi for easy connectivity, along with many other convenient features.

TE endpoints are ideal for meetings, interviews, or distance learning.

Features

Bring the people of your enterprise face-to-face across any distance

  • Built-in Wi-Fi connects to networks, presentation sources, microphones, and touch panels
  • VME + HP dual-core technology delivers superb HD-video with half the bandwidth of competing systems
  • Scalable Video Coding (SVC) and Huawei’s patented Super Error Correction (SEC) 3.0 provide excellent network adaptability and security while ensuring audiovisual quality even when the packet loss rate reaches 20%
  • Compatibility with a variety of protocols enables interoperability with Unified Communications (UC) systems, IP Multimedia Subsystems (IMSs), and other third-party systems

Specifications

Specifications TE40 TE50 TE60
Standards and Protocols ITU-T H.323, IETF SIP, ITU-T H.239, and BFCP ITU-T H.323, IETF SIP, ITU-T H.239, and BFCP ITU-T H.323, IETF SIP, ITU-T H.239, and BFCP
Video Standards and Protocols H.263, H.263+, H.264 BP, H.264 HP, H.264 SVC, and RTV H.263, H.263+, H.264 BP, H.264 HP, H.264 SVC, and RTV H.263, H.263+, H.264 BP, H.264 HP, H.264 SVC, and RTV
Video Resolution of People (using different network bandwidths)
  • 1080p60 using 1 Mbit/s (optional)
  • 1080p30 using 512 kbit/s (optional)
  • 1080i60 using 512 kbit/s (optional)
  • 720p50/60 using 512 kbit/s (optional)
  • 720p25/30 using 384 kbit/s
  • 1080p60 using 1 Mbit/s (optional)
  • 1080p30 using 512 kbit/s
  • 1080i60 using 512 kbit/s
  • 720p50/60 using 512 kbit/s
  • 720p25/30 using 384 kbit/s
  • 1080p60 using 1 Mbit/s (optional)
  • 1080p30 using 512 kbit/s
  • 1080i60 using 512 kbit/s
  • 720p50/60 using 512 kbit/s
  • 720p25/30 using 384 kbit/s
Dual Stream Dual 1080p60 (optional), Dual 1080p30 (optional), and Dual 720p30 Dual 1080p60 (optional), Dual 1080p30 Dual 1080p60 (optional), Dual 1080p30
Embedded MCU 6-way HD video sites + 3-way VoIP sites 6-way HD video sites + 3-way VoIP sites 9-way HD video sites + 3-way VoIP sites
Connected
Microphones		 Two VPM220 or two VPM220W Two VPM220 or two VPM220W Three VPM220 or three VPM220W

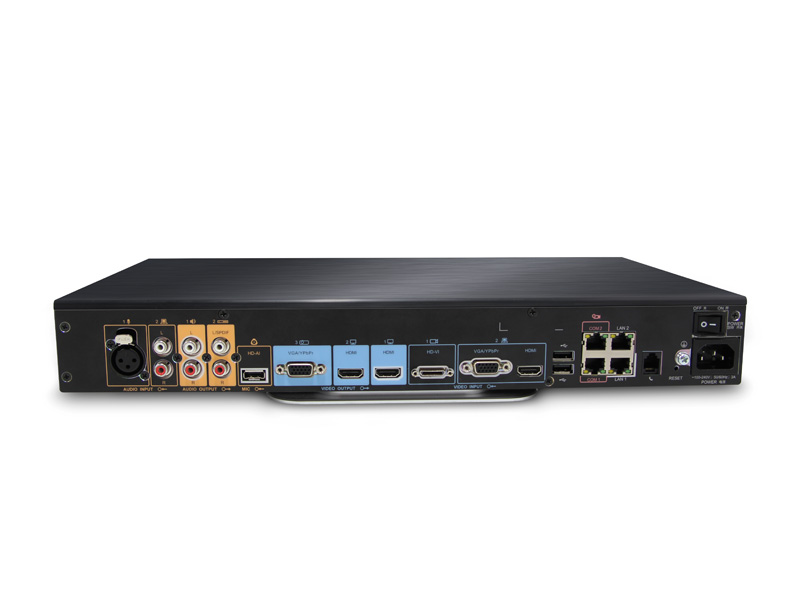

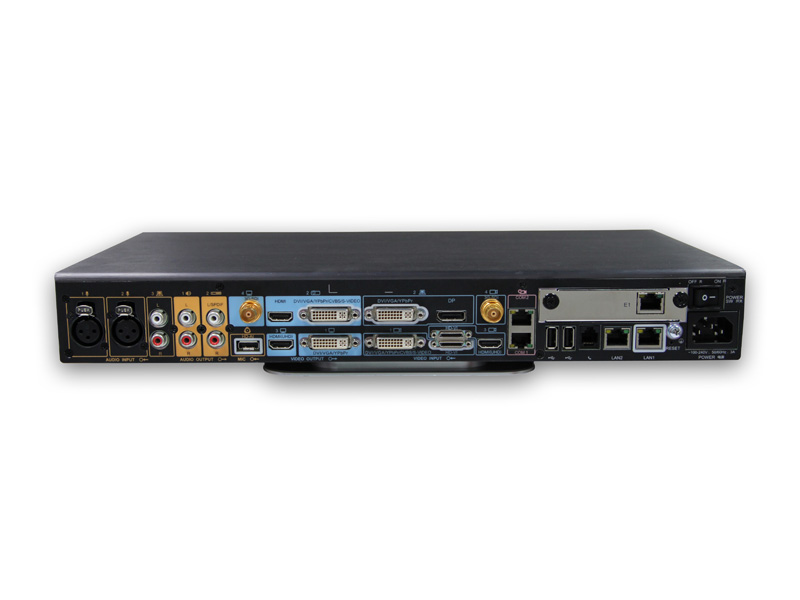

Video Inputs 1 x HD-VI/DVI, 1 x HDMI/DVI, and 1 x VGA/YPbPr 1 x HD-VI/DVI, 1 x HDMI/DVI, 1 x VGA/YPbPr, 1 x 3G-SDI, and 1 x CVBS 2 x HD-VI/DVI, 2 x DVI-I/HDMI/VGA/YPbPr

1 x HDMI/DVI, 1 x 3G-SDI, 1 x Display Port, and 1 x CVBS/S-VIDEO (DVI-I multiplex)
Video Outputs 2 x HDMI/DVI, 1 x VGA/YPbPr 2 x HDMI/DVI, 1 x VGA/YPbPr, 1 x 3G-SDI, and 1 x CVBS 2 x HDMI/DVI, 2 x DVI-I/HDMI/VGA/YPbPr, 1 x 3G-SDI, and 1 x CVBS/S-VIDEO (DVI-I multiplex)
Audio Inputs 1 x XLR, 2 x RCA, 1 x HDMI, and 1 x HD-AI (microphone array/audio input device) 1 x XLR, 2 x RCA, 1 x 3.5 mm, 1 x HDMI, and 1 x HD-AI (microphone array/audio input device) 2 x XLR, 2 x RCA, 1 x HDMI, 1 x Display Port, and 1 x HD-AI (microphone array/audio input device)
Audio Outputs 4 x RCA, 2 x HDMI 4 x RCA, 2 x HDMI 4 x RCA, 2 x HDMI, and 2 x DVI-I (DVI converted to HDMI)
Other Ports
  • IP: 10/100/1,000 Base-T, 2 x RJ45
  • PSTN (#): 1 x RJ11
  • Wireless: Built-in Wi-Fi
  • 2 x RS-232 COM, 2 x USB 2.0 Host
  • IP: 10/100/1,000 Base-T, 2 x RJ45
  • PSTN (#): 1 x RJ11
  • Wireless: Built-in Wi-Fi
  • 2 x RS-232 COM, 2 x USB 2.0 Host
  • 4E1 (optional): G.703, G.704, 4 x RJ45
  • PSTN (#): 1 x RJ11
  • IP: 10/100/1,000 Base-T, 2 x RJ45
  • Wireless: Built-in Wi-Fi
  • 2 x RS232 COM, 2 x USB 2.0 Host
Multiview 2-view 3-view 3-view
