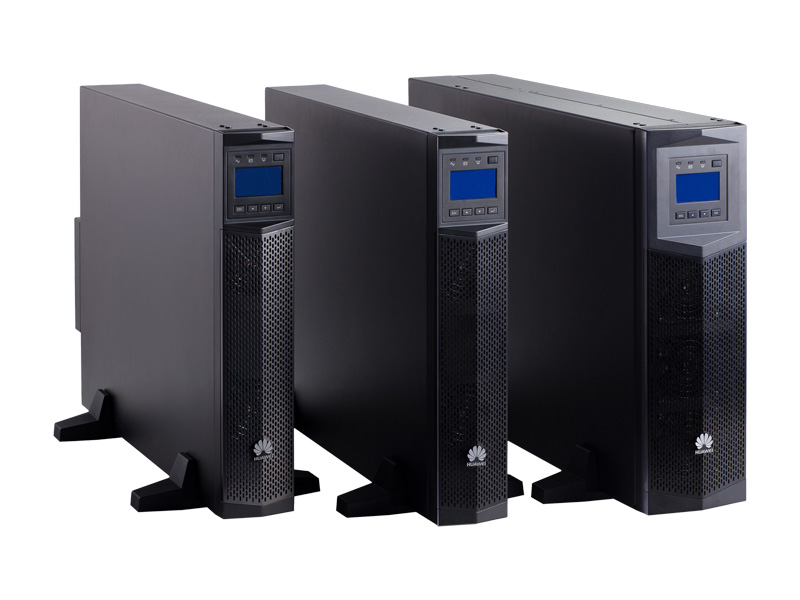

UPS2000-G Series (1 kVA to 20 kVA) Uninterruptable Power Supply

The UPS2000-G is an Uninterruptible Power Supply (UPS) specifically designed for small data centers, large branch offices, sales networks, and other small-scale uses.

The online, double conversion power system safely delivers uninterrupted, high-quality AC power in the 1 kVA to 20 kVA capacity range. It is rack/tower convertible and has excellent “green” credentials. Its 95% high-efficiency rating earned Enhanced Capital Allowance (ECA) tax allowance from the U.K. and Energy Star certification from the U.S.

The power supply’s reliable, flexible, and highly efficient power protection is a great solution for a number of small power scenarios.

Features

Smaller UPS, Greater Flexibility

When customers need power, they need it now… reliably. They cannot afford down time or data loss due to power supply interruptions. The UPS2000-G series supports customers in several ways:

  • Reliable: Excellent load and environmental adaptability ensures a safe and reliable power supply
  • Efficient: With 95% efficiency in normal mode, it is Energy Star certified in the U.S., saving customers more than 50% over less-efficient models

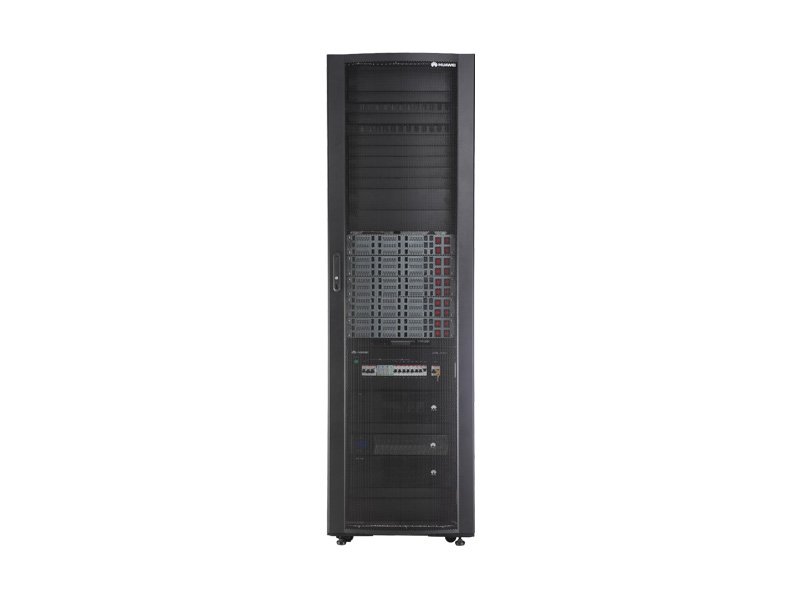

  • Simple: It is tower/rack convertible and allows for high power density for several compatible power distribution formats

Specifications

Item 1 kVA 2 kVA 3 kVA 6 kVA 10 kVA 15 kVA 20 kVA
Rated Capacity 1 kVA/0.8 kW 2 kVA/1.6 kW 3 kVA/2.4 kW 6 kVA/5.4 kW 10 kVA/9 kW 15 kVA/13.5 kW 20 kVA/18 kW
Input/Output 1-in:1-out 1-in:1-out 1-in:1-out 1-in:1-out 1-in:1-out/3-in:1-out 1-in:1-out/3-in:1-out/3-in:3-out
Rated Voltage 200V/208V/220V/230V/240V AC 220V/230V/240V AC
Battery Voltage Standard  24V DC 48V DC 72V DC 240V DC —
Long Backup 36V DC 72V DC 96V DC 192V to 240V DC ±(384V to 480V) DC
Output Power Factor 0.8 0.9
Efficiency 88% 89% 90% 94% 94.5% 95%
Noise < 50 dB < 55 dB < 58 dB
H x W x D Standard 86 mm x 438 mm x 310 mm 86 mm x 438 mm x 410 mm 88 mm x 438 mm x 630 mm 86 mm x 430 mm x 585 mm 130 mm x 430 mm x 685 mm
Long Backup 88 mm x 438 mm x 410 mm
Communications USB and RS232 (optional RS485/dry contact/SNMP) USB (optional RS485/dry contact/SNMP)
