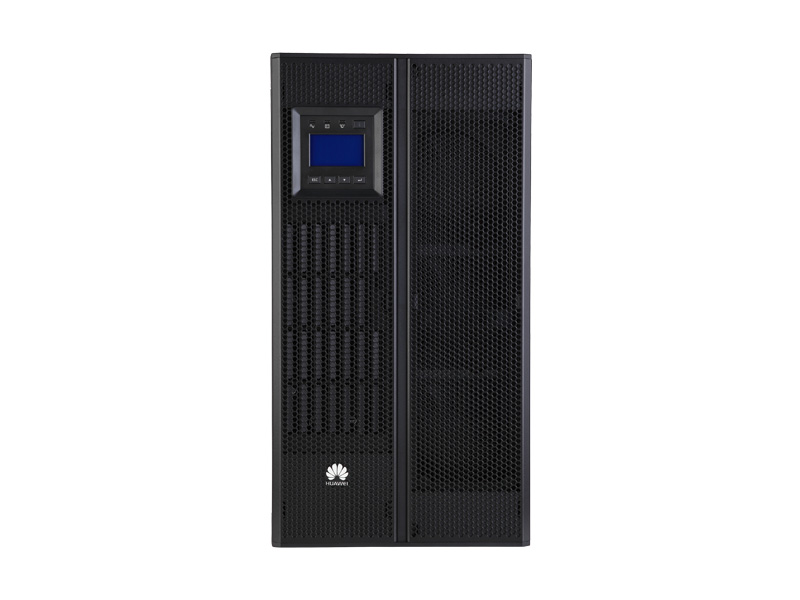

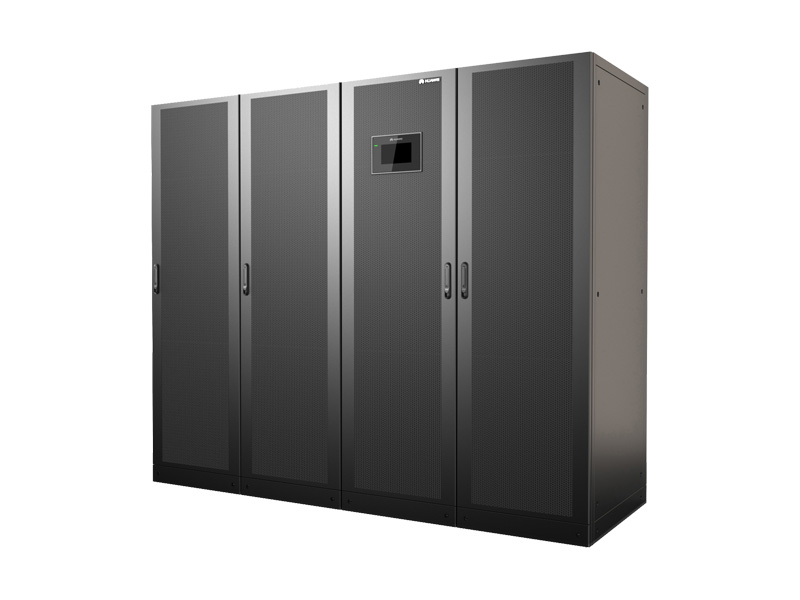

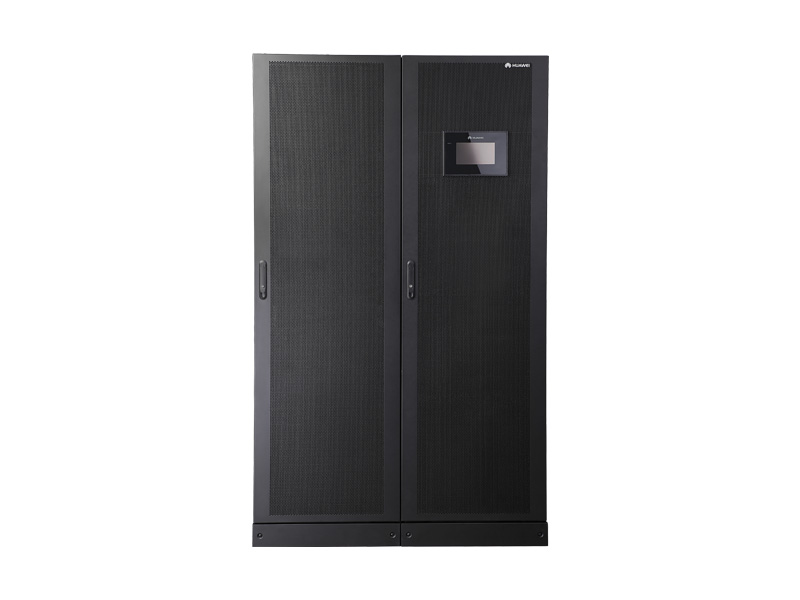

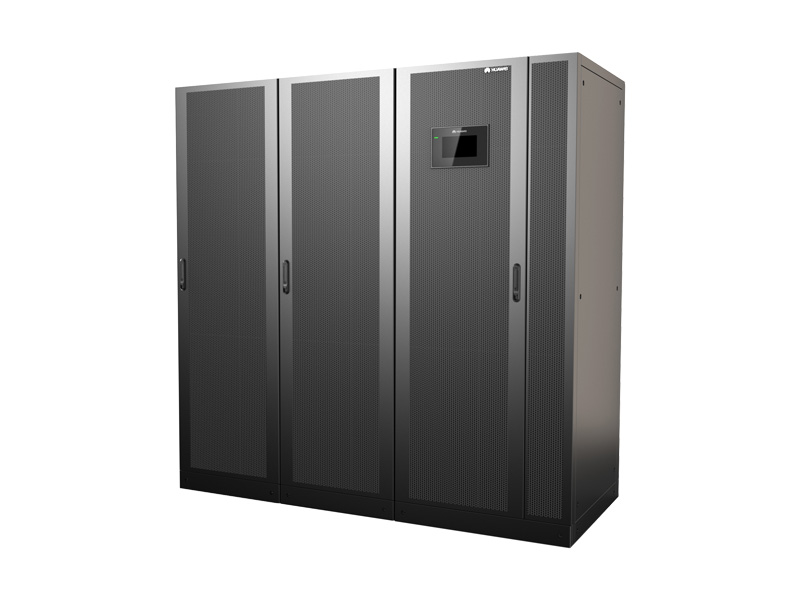

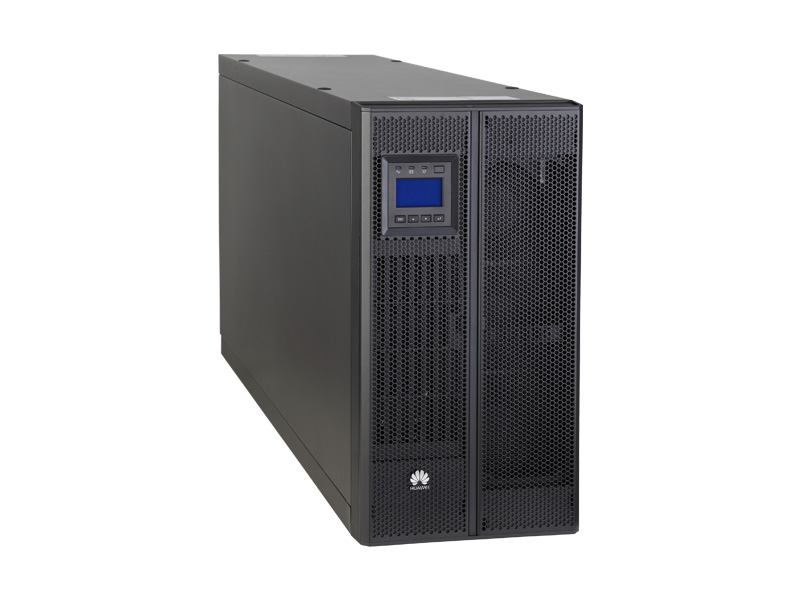

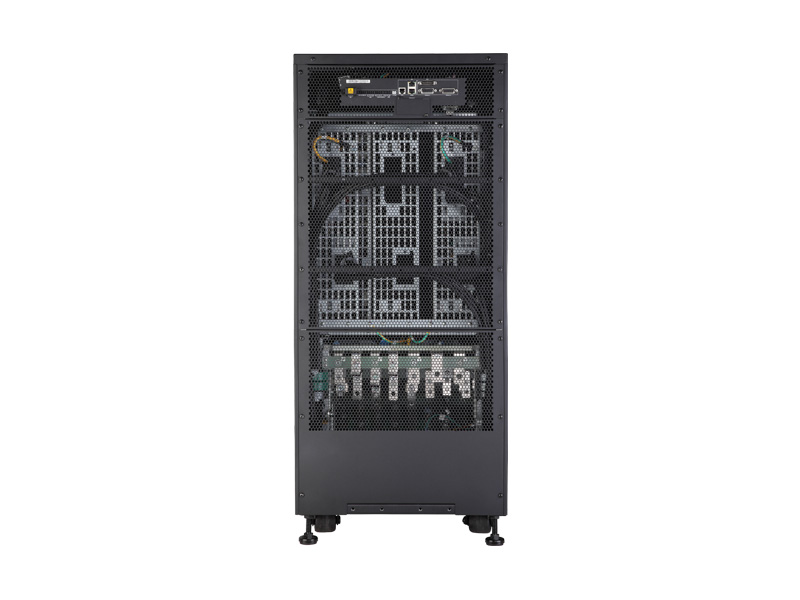

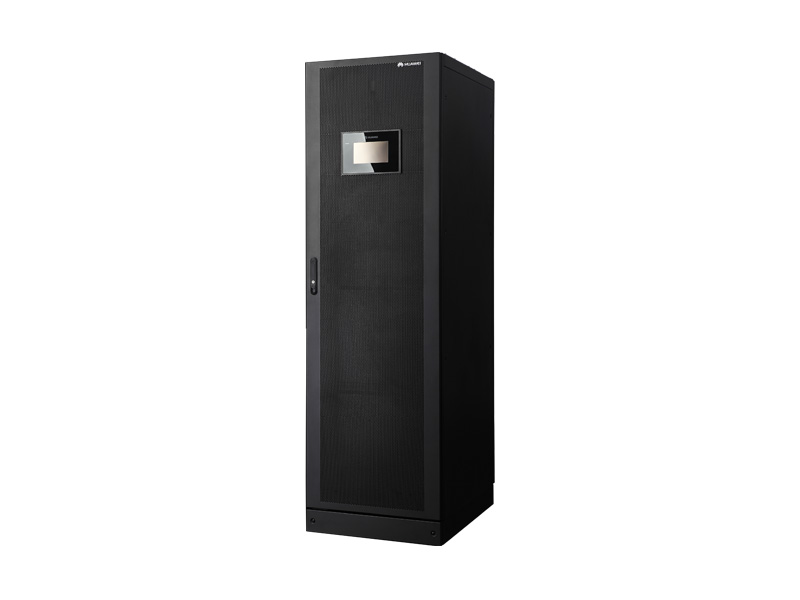

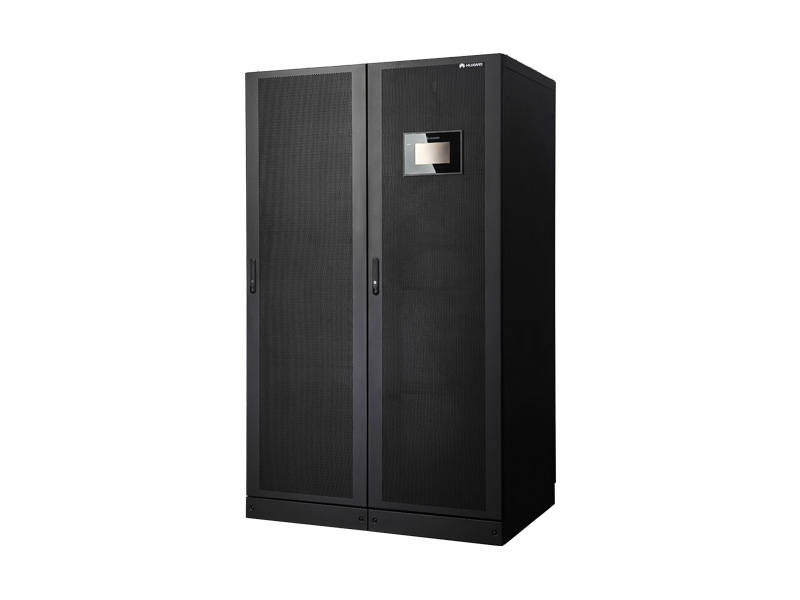

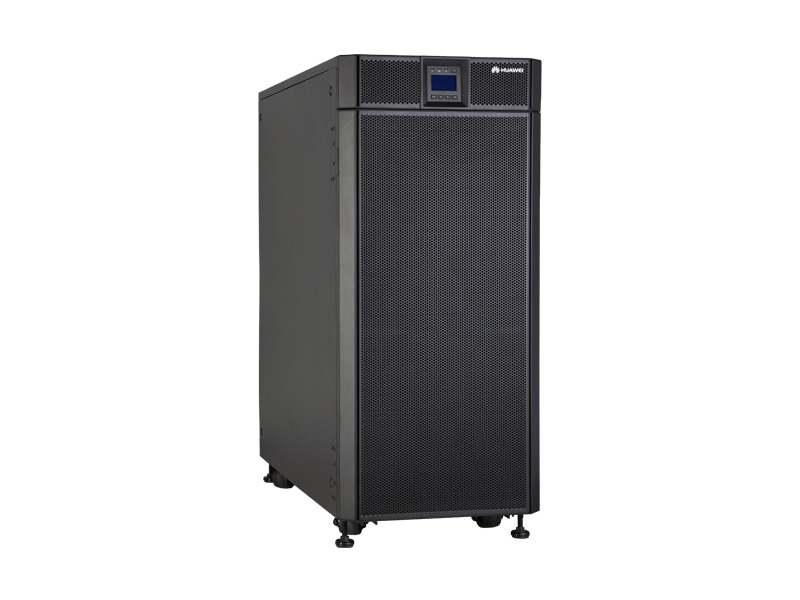

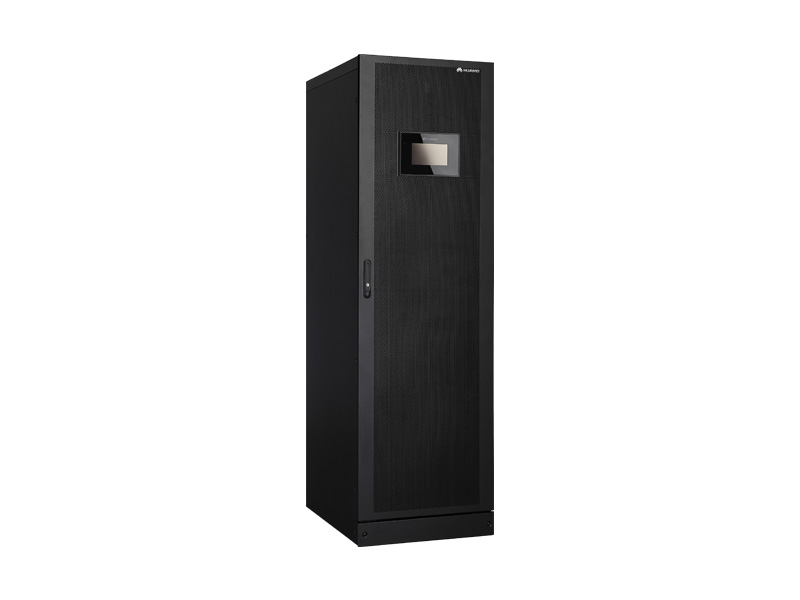

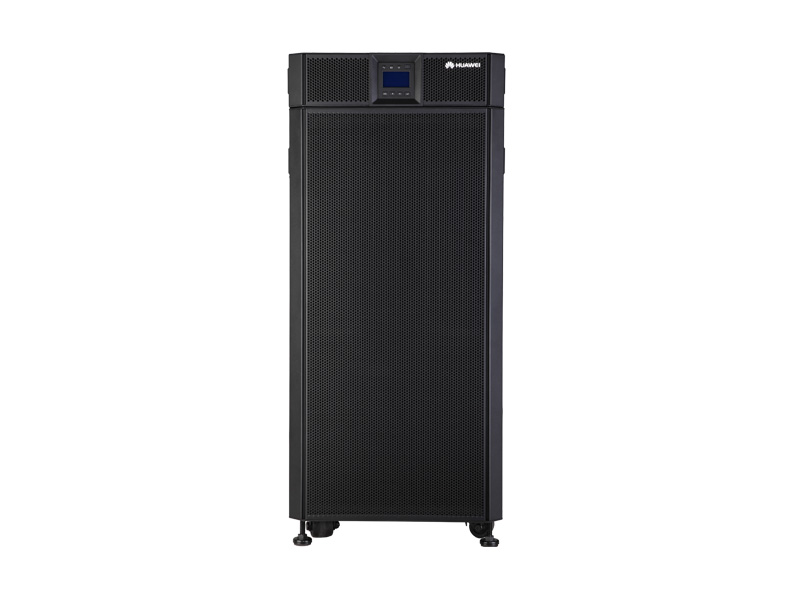

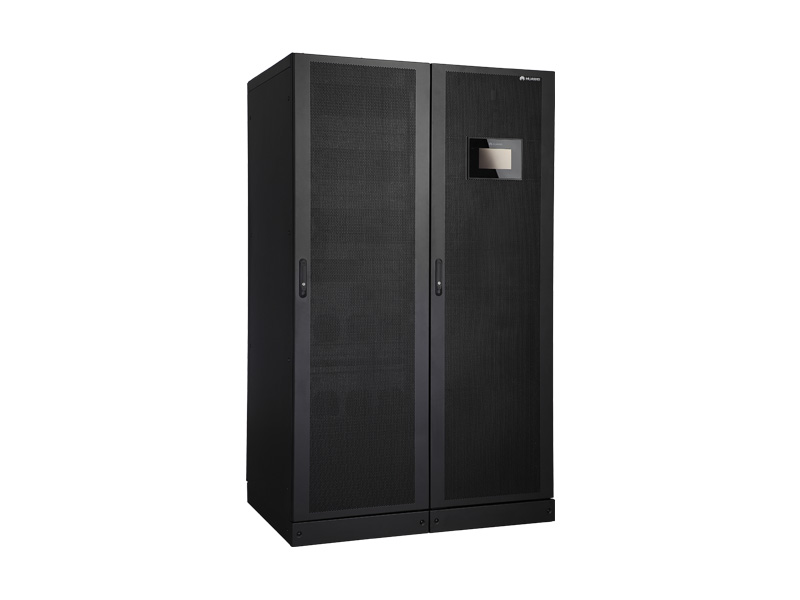

UPS5000-A Series (30 kVA to 800 kVA) Uninterruptable Power Supply
The UPS5000-A is an online, double-conversion Uninterruptable Power Supply (UPS) that features high reliability, high efficiency, and high power density. The all-digital control technology provides excellent output in harsh work environments, which supplies uninterruptable power to large- and medium-size data centers.
AC power is rated at 380V/400V/415V AC for medium and large data centers, scheduling centers, control centers, and management centers.
Go with Huawei, your source for world-class, reliable, efficient power supplies.
Benefit from the UPS5000-A’s superior stability, reliability, and efficiency
- Reliable: Safely and reliably adapts to a wide variety of loads, power grids, and environments
- Efficient: Up to 96% efficient and energy costs 50% less compared to traditional tower UPS units
- Simple: The UPS5000 supports intelligent network management by monitoring information in real time
| Item | 30 kVA/40 kVA | 60 kVA/80 kVA/120 kVA | 200 kVA/300 kVA | 400 kVA/500 kVA | 600 kVA | 800 kVA |
| Rated Capacity |
|
|
|
|
600 kVA/570 kW | 800 kVA/760 kW |
| Input and Output Systems | Three-phase, five-wire | |||||
| Rated Voltage | 380V/400V/415V AC | |||||
| Battery Voltage | 360V to 380V DC (Number of batteries: 30 to 40, 32 by default) | |||||
| Overload Capacity | Inverter: 110% load for 60 min; 125% load for 10 min; 150% load for 1 min | |||||
| Output Power Factor | 1 | 0.95 | ||||
| Efficiency | 95.7% | 96% | ||||
| Noise | ≤ 58 dB | ≤ 64 dB | ≤ 68 dB | ≤ 70 dB | ||
| Dimensions (H x W x D) | 500 mm x 264 mm x 800 mm | 1,020 mm x 440 mm x 850 mm | 2,000 mm x 600 mm x 850 mm | 2,000 mm x 1,200 mm x 850 mm | 2,000 mm x 2,000 mm x 850 mm | 2,000 mm x 2,400 mm x 850 mm |
| Communication | Dry contacts, RS485, and SNMP | |||||
