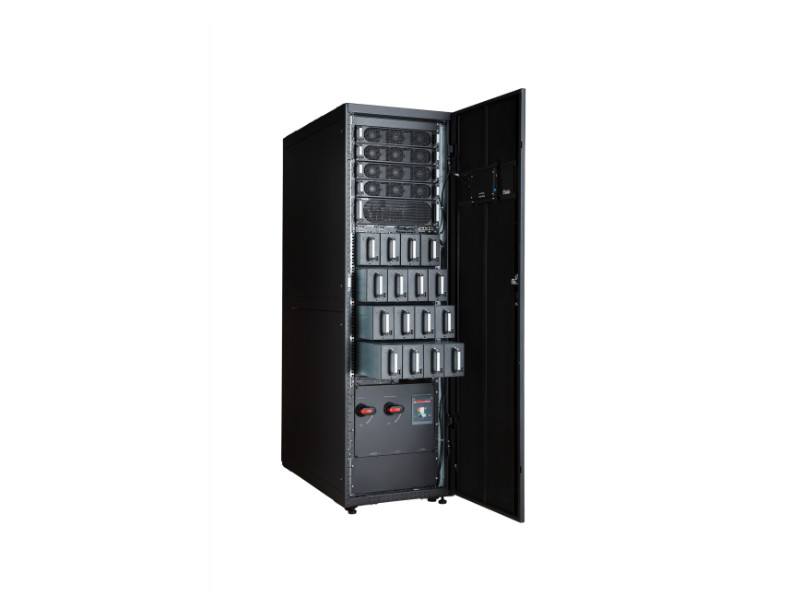

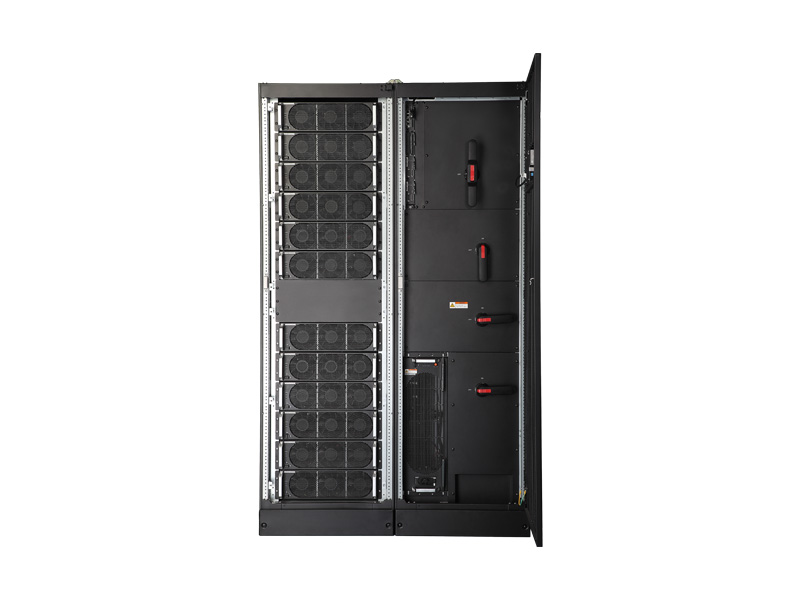

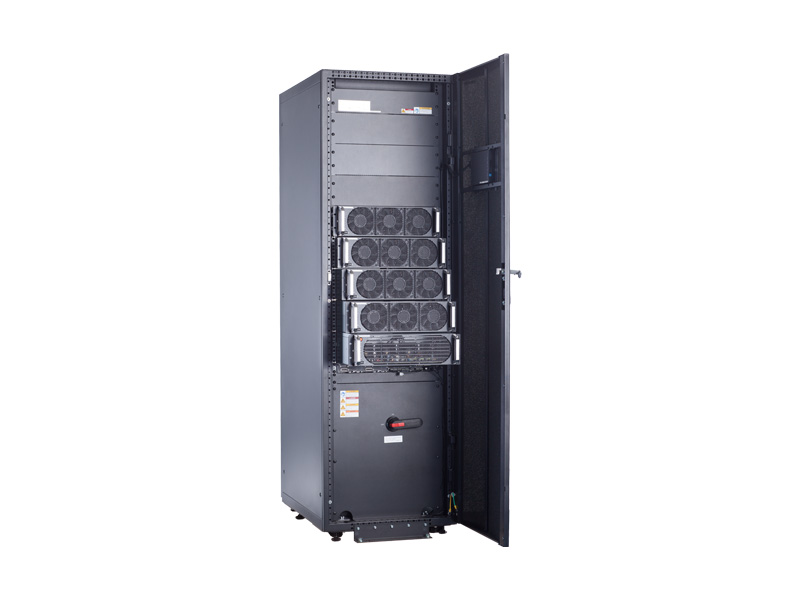

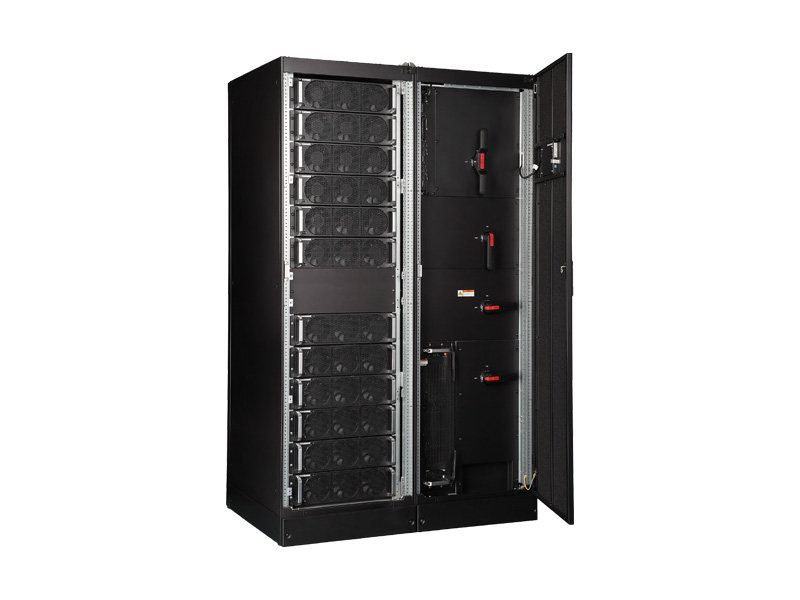

UPS5000-E Series (25 kVA to 800 kVA) Uninterruptible Power Supply
This modular UPS is designed for large and medium data centers. All modules are hot-swappable, and each cabinet has a maximum capacity of 800 kVA.
Maintenance or capacity expansion can be completed in approximately 5 minutes. Efficiency is 95% at 20% load and 96% at 40% load.
For a reliable, flexible, and efficient power supply that reduces operating expenses, look to the UPS5000-E Series.
Step into the future with an efficient, modular UPS that grows with your business
- Reliable: Redundant design for modules eliminates single points of failure, iPower pre-warnings for key components in case of power supply interruption
- Efficient: Reduces PUE with a low-load, high-efficiency design that is 95% to 96% efficient at the most common load
- Simple: Fully modular architecture expands with business growth and online customer maintenance greatly shortens the Mean-Time-To-Repair (MTTR) to enhance availability
| Item | UPS5000-E |

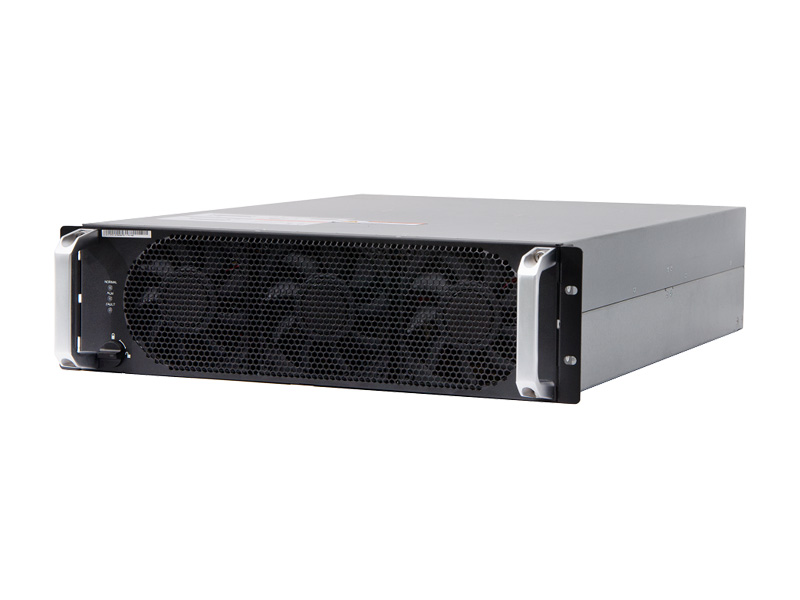

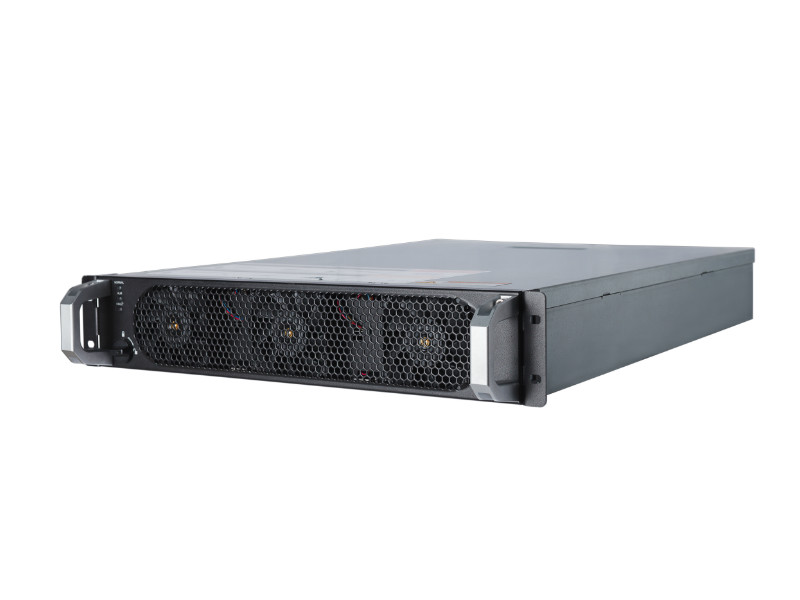

| Power Module Capacity | 25 kVA/kW and 40 kVA/kW |
| Rack Capacity |
|

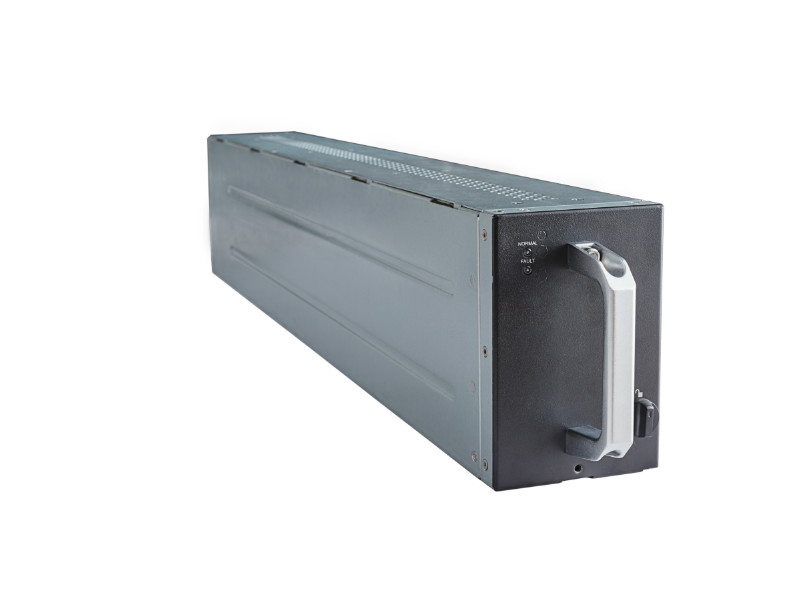

| Hot-swap Modules | Power module, bypass module, energy control module, and communication cards |
| Input and Output Systems | Three-phase input, three-phase output |
| Rated Voltage | 380V/400V/415V AC |
| Battery Voltage | 360V to 480V DC |
| Output Power Factor | 1 |
| Efficiency | 125 kVA: 95.5%; others: 96% |
| Noise |
|
| Dimensions (H x W x D) |
|
| Communication | Modbus, SNMP, and dry contacts |
