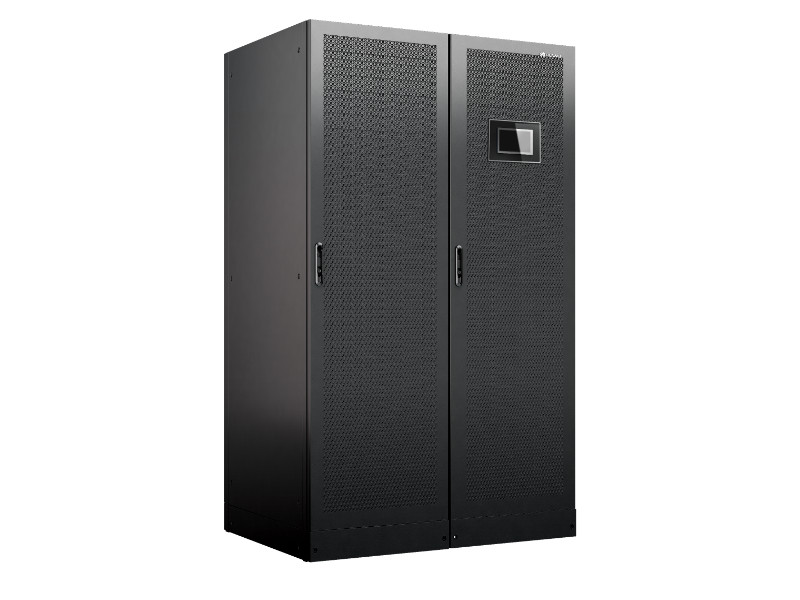

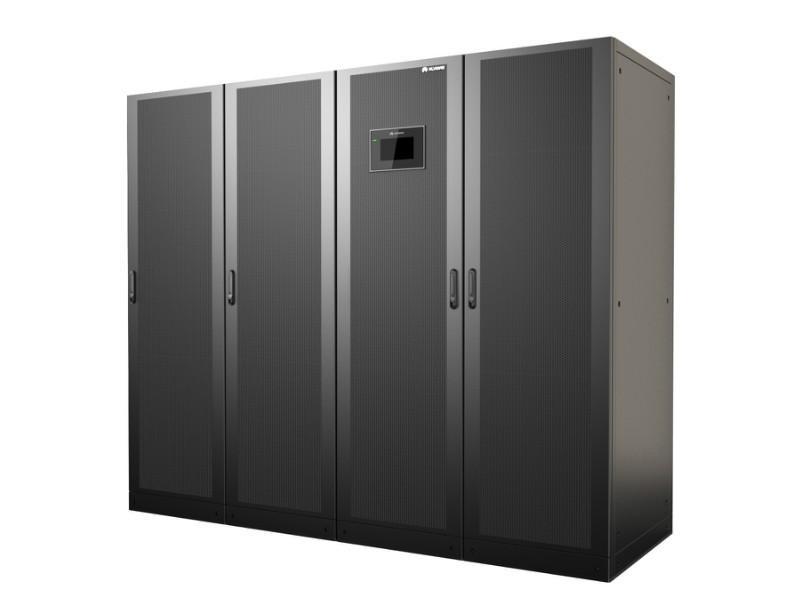

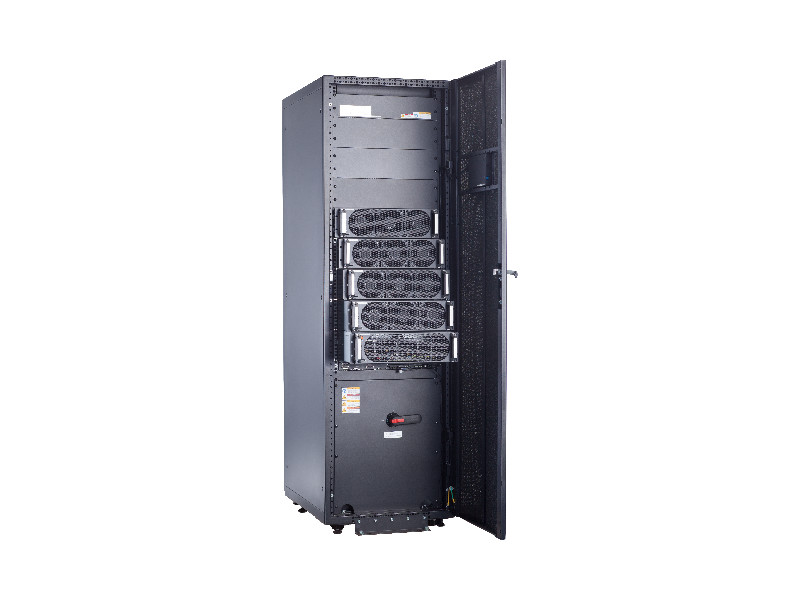

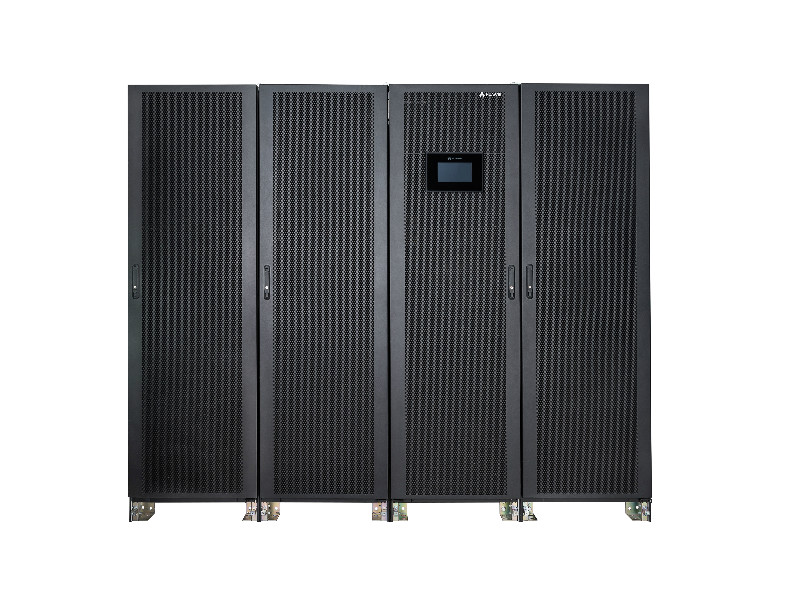

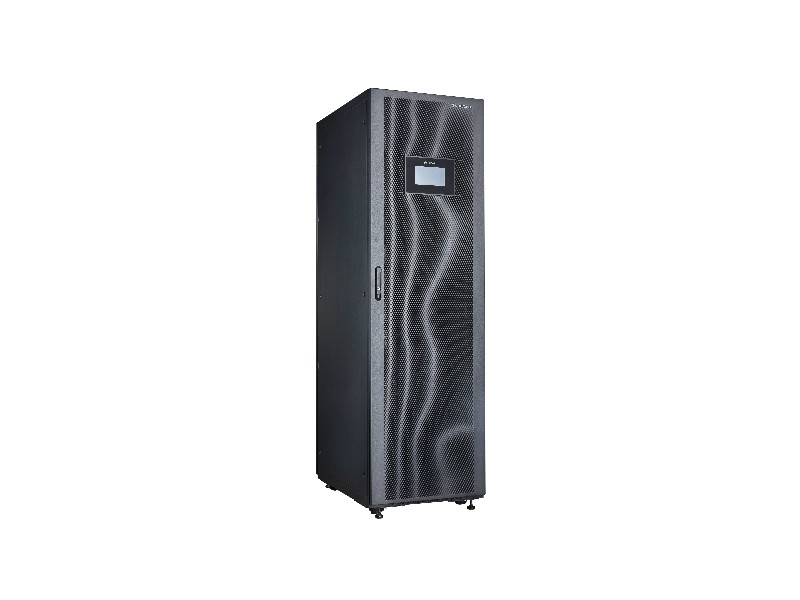

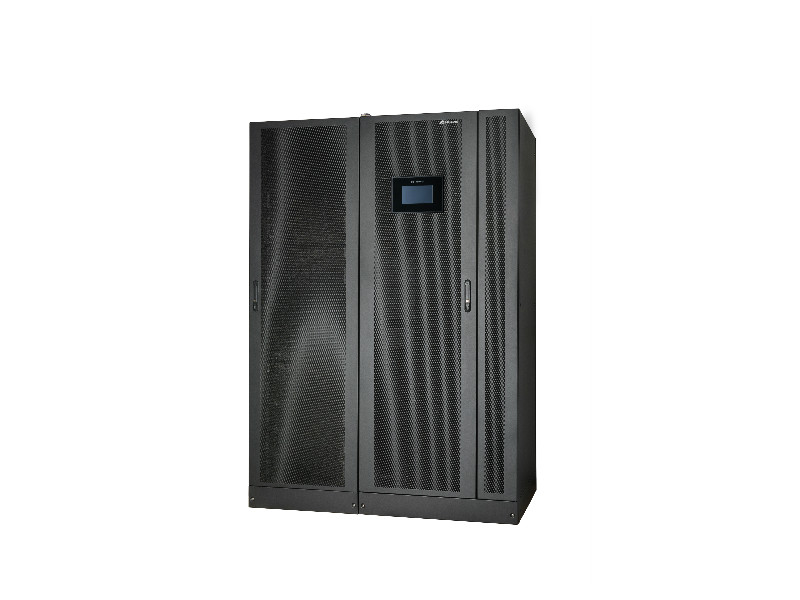

UPS5000-S Series (50 kVA to 800 kVA) Uninterruptible Power System

This modular UPS is designed for large and medium data centers. All modules are hot-swappable, and each cabinet has a maximum capacity of 800 kVA.

Maintenance or capacity expansion can be completed in approximately 5 minutes. Efficiency is 96.5% at 20% load and 97% at 40% load.

For a reliable, flexible, and efficient power supply that reduces operating expenses, look to the UPS5000-S Series.

Step into the future with an efficient, modular UPS that grows with your business

  • High adaptability: Safely and reliably adapts to a wide variety of loads, power grids, and environments
  • High efficiency: Reduces PUE with a low-load, high-efficiency design that is 96.5% to 97% efficient at the average load
  • Easy to use: Fully modular architecture expands with business growth and online customer maintenance greatly shortens the Mean-Time-To-Repair (MTTR) to enhance availability
  • Intelligent: Reduce operating expenses with detailed management of critical power nodes and intelligent operation and maintenance
Item UPS5000-S
Power Module Capacity 50 kVA/50 kW
Rack Capacity
  • 50 kVA module: 200/300/400/500/600/800 kVA rack (respectively supports 4/6/8/10/12/16 power modules)
Hot-swap Modules Power module, bypass module, energy control module, and communication cards
Input and Output Systems Three-phase input, three-phase output
Rated Voltage 380V/400V/415V AC
Battery Voltage 360V to 600V DC
Output Power Factor 1
Efficiency Module efficiency: 97.5%, system efficiency: 97.1%
Communication Modbus, SNMP, and dry contacts
