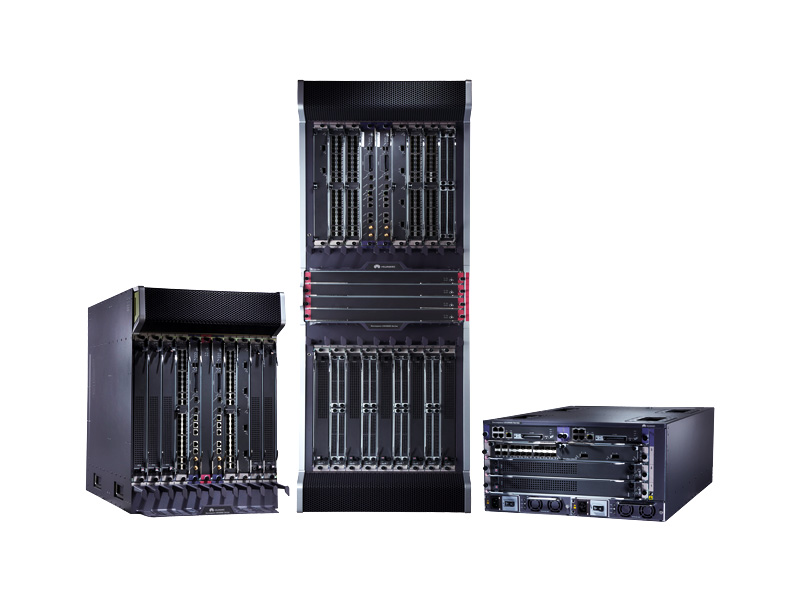

USG9500 Terabit-level Next-Generation Firewall

World’s fastest data center firewall ensures secure services for large data centers, cloud computing environments, and enterprise campus networks. Integrated switching, routing, and security enable smooth upgrades, easy virtualization, and terabit-level processing capability – all with carrier-grade reliability in a compact, space-saving form factor.

NP + multi-core + distributed architecture integrates security, virtualization, and comprehensive service awareness with continuous database updates to optimize protection.

Minimize security risks, ensure ongoing protection, and reduce TCO with Huawei’s NSS-tested data center firewall.

Features

Slash TCO and get ongoing, industry-leading security, high availability, terabit-level processing, and top performance with the world’s fastest data center firewall.

  • Integrated device provides up to 1.44 Tbit/s throughput and supports up to 1.44 billion concurrent sessions, delivering an industry-leading 160 Gbit/s Stream Processing Units (SPUs) while saving 75% of rack space
  • Integrates multiple services and provides traditional functions (such as NAT, VPN, IPS, and anti-DDoS) and enhanced functions (such as service awareness, virtualization, and IPv6 security) to significantly reduce TCO
  • Dual-MPU, hot standby, and load balancing ensure 99.999% uptime availability. Hot-swappable components enable online upgrades and capacity expansion without service interruption
  • The first Terabit, next-generation firewall to be tested by the NSS, the USG9500 is currently the world’s fastest firewall

Specifications

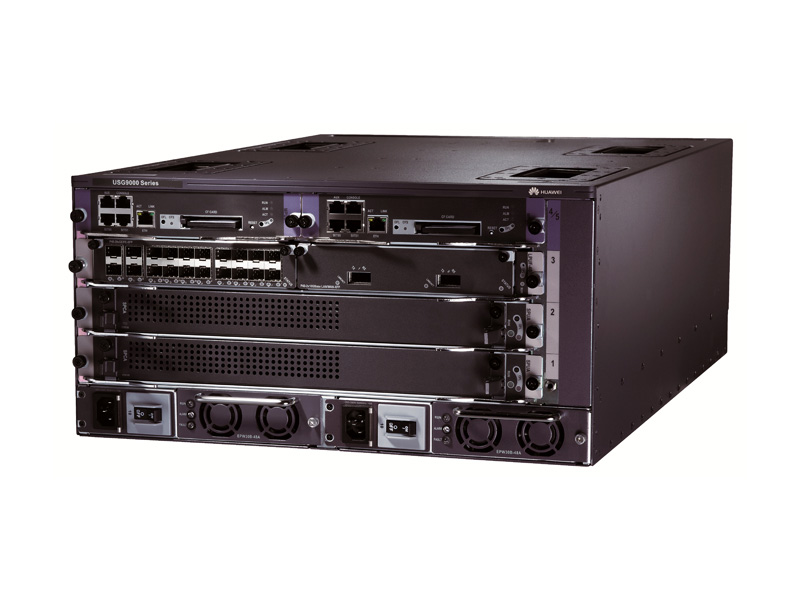

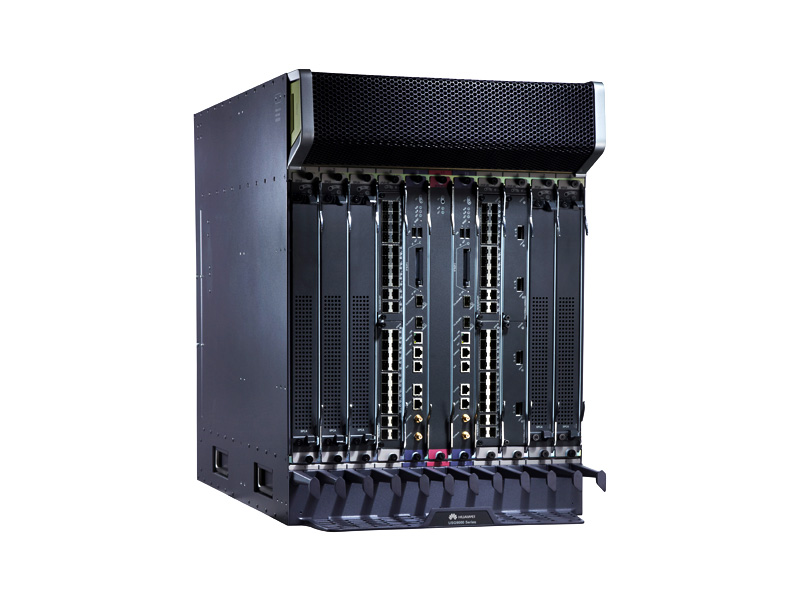

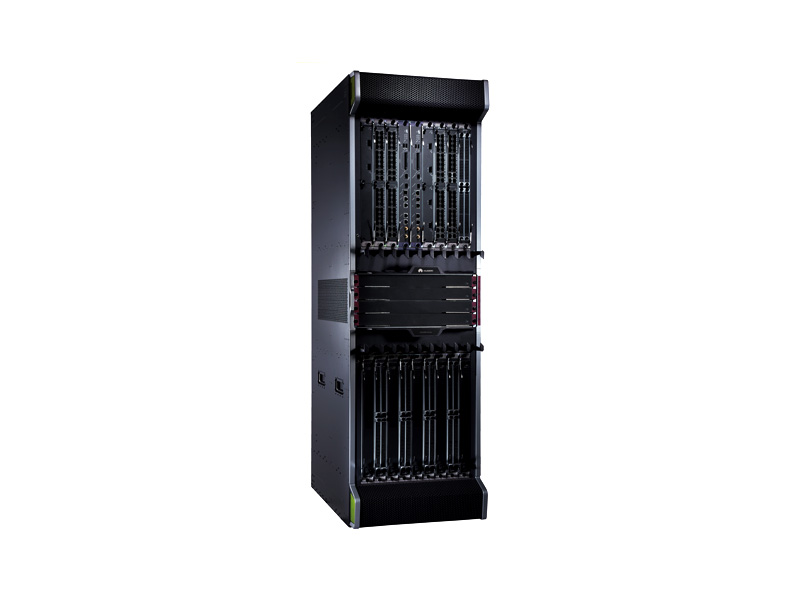

Product USG9520 USG9560 USG9580
Expansion Slots 3 8 16
Maximum Firewall Throughput 120 Gbit/s 720 Gbit/s 1.44 Tbit/s
Maximum Number of Concurrent Sessions 120 million 720 million 1.44 billion
Basic Functions Routing/Transparent/Composite mode, state validation detection, blacklist and whitelist, access control, Application Specific Packet Filter (ASPF), security zone division, virtual firewall, smart route, and load balancing
NAT/CGN Destination NAT/PAT, NAT NO-PAT, source NAT-IP address persistency, source IP address pool grouping, NAT Server, bi-directional NAT, NAT-ALG (Application Layer Gateway), unlimited IP address expansion, policy-based destination NAT, port range pre-allocation, hair pinning mode, SMART NAT, NAT64, DS-Lite, and 6RD (IPv6 Rapid Deployment)
NGFW Functions Supports intrusion detection and prevention, URL filtering, antivirus, data loss prevention, etc.
PKI PKI certificate requests (PKCS 10), Certificate Authority (CA)

PKI authentication: EAP-SIM, EAP-AKA

PKI protocol: SCEP, OCSP, and CMPv2
Self-signed certificate
Virtual System 4,096-Virtual Firewall (VFW) definition, VLAN virtualization, security zones virtualization, user-defined virtual resources, route between VFW, and VFW-based traffic CAR
DDoS Mitigation SYN-flood, ICMP-flood, TCP-flood, UDP-flood, and DNS-flood

Port-scan, Smurf, Tear-drop, and IP-Sweep

IPv6-extension-header defense, TTL detection, TCP-mss detection, and attack log output
