CloudEngine 1800V Virtual Switch

Huawei CloudEngine 1800V (CE1800V) is a distributed virtual switch designed for virtualized environments in cloud data centers. It provides best-in-class forwarding performance, open architecture, and enhanced security protection. It can run on multiple compute virtualization platforms such as Huawei FusionSphere, VMware ESXi, as well as open-source platforms.

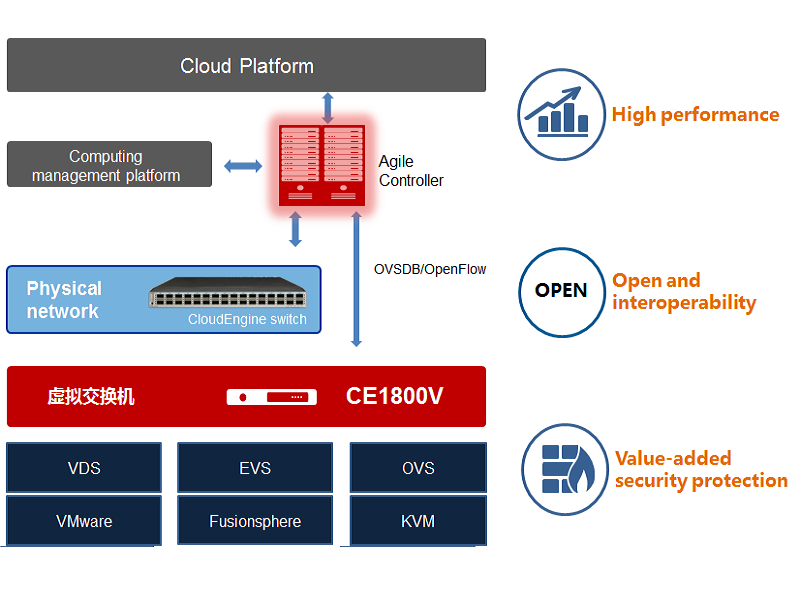

The CE1800V can be combined with Huawei CloudEngine hardware switches and Huawei Agile Controller to offer a Software-Defined Networking (SDN) solution for data centers based on hybrid or host overlays. This solution supports Virtual Machines (VMs), containers, and physical servers with the same architecture.

Features

  • High performance: 12 Gbit/s per core, 20% higher than industry average, improving user experience
  • Openness and interoperability: Openflow and OVSDB protocols, interoperability with multiple virtualization platforms; service chain deployment based on IETF NSH
  • Value-added security protection: Value-added services and integrated distributed firewall to protect security on a per VM port basis

Specifications

Item CE1800V
Forwarding Architecture
  • Packet switching architecture
  • OpenFlow forwarding architecture
Forwarding Performance 12 Gbit/s per core, user mode
Overlay
  • Virtual Extensible LAN (VXLAN)
  • Number of VXLAN Network Identifiers (VNIs): 128K
Layer 2
  • Number of VLANs: 4K
  • Number of MAC entries: 8K
  • Link Aggregation function
Layer 3
  • IP packet forwarding
  • Distributed forwarding by Distributed Virtual Routers (DVRs)
DHCP Distributed DHCP
QoS and Security
  • Inbound traffic rate limiting
  • DSCP priority mapping
  • VM port isolation
SDN
  • OpenFlow 1.3
  • Open vSwitch Database Management Protocol (OVSDB)
SFC
  • IETF NSH
  • SC: Classifies received packets and sends them to matching service chains
  • SFF: Forwards packets along a predefined NSH service chain and terminates the service chain at the endpoint
Management and Maintenance
  • Automatic installation and upgrade
  • Resource alarm, monitoring, inspection, logging, and interface traffic statistics collection
  • Link exception and abnormal process state monitoring and automatic recovery
  • Remote Layer 3 port mirroring
Compatibility
  • Interoperable with FusionSphere
  • Interoperable with OpenStack KVM
  • Interoperable with VMware ESXi
